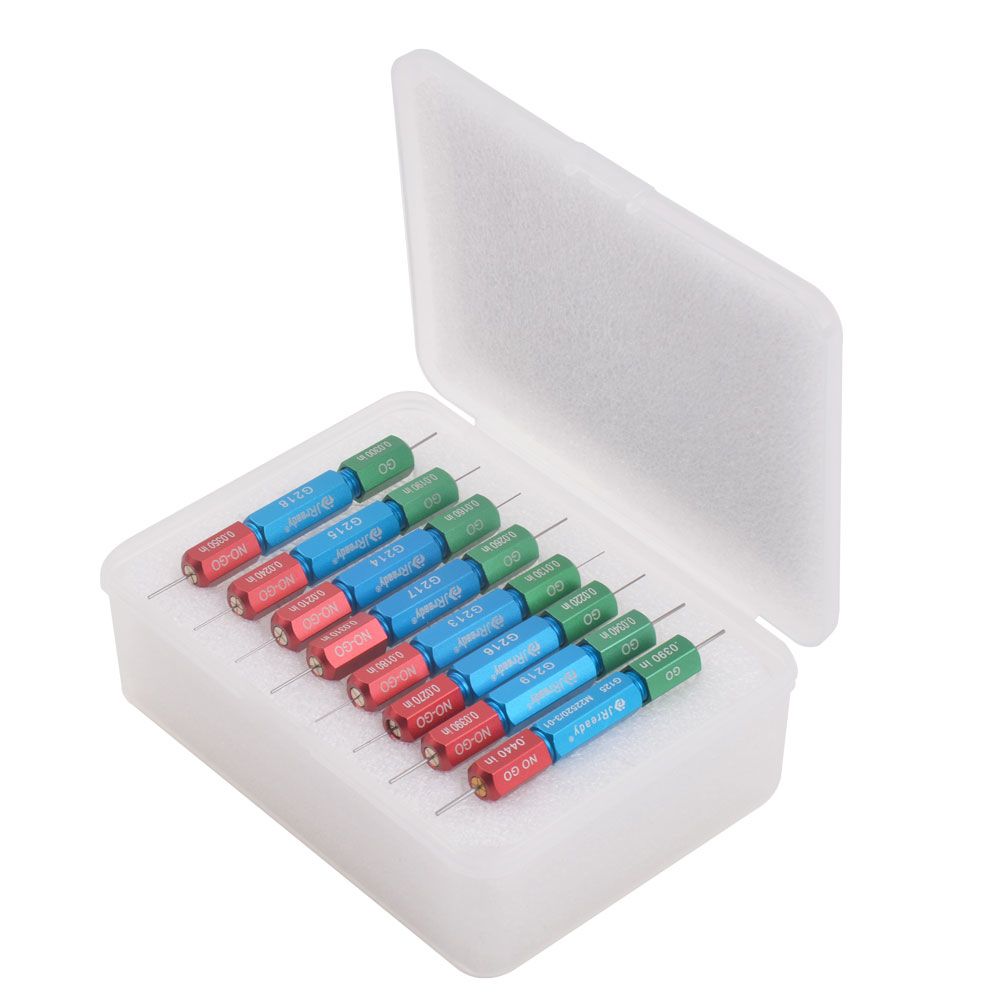

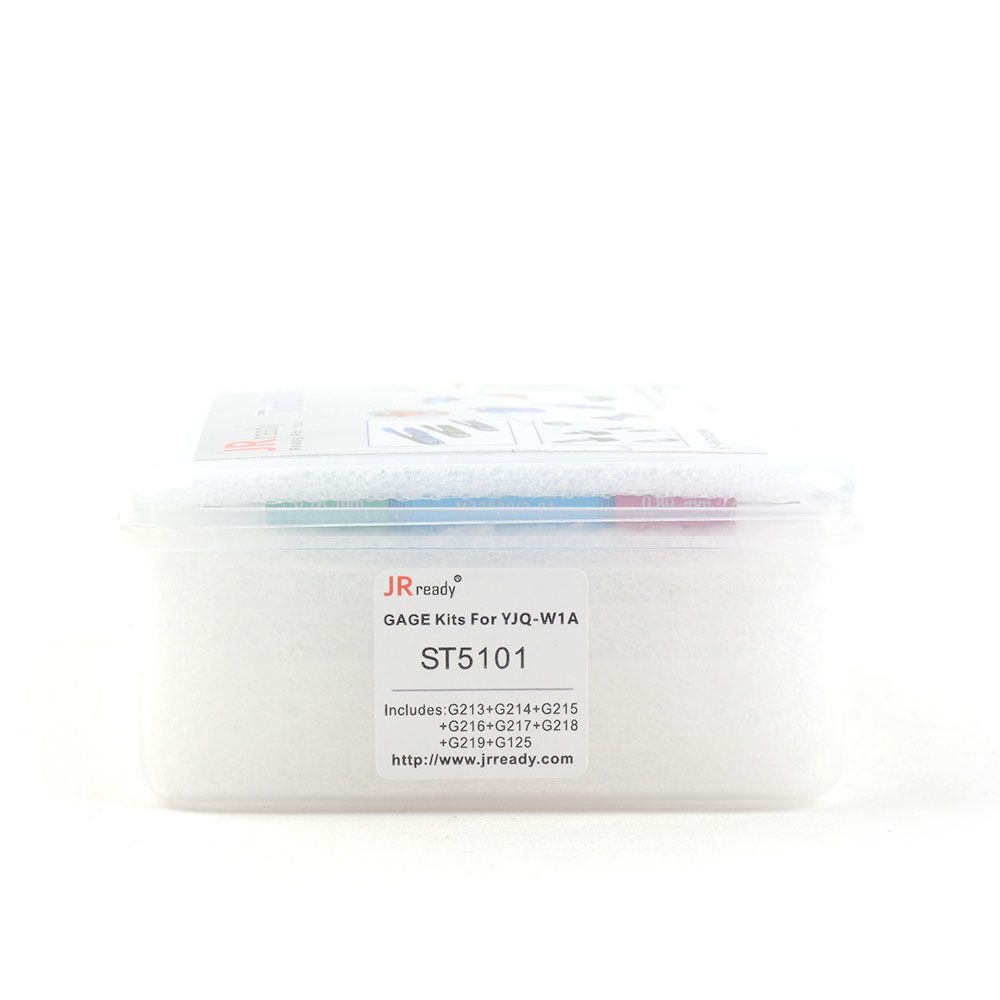

JReady Go/No-Go Gage Tool Kit
Compatible with YJQ-W1A (M22520/1-01) Hand Crimp Tool and YJQ-W1Q Pneumatic Crimp Tool
- Verifies that the crimp tool is properly calibrated before and after use.
- Ensures accurate wire crimping results with consistent performance.
- Replaceable and clearly identified gage pins for easy field use.
- Manufactured according to MIL-SPEC standards.
- Periodic gaging is recommended to maintain calibration.
Gaging Instructions
"GO" Gaging: Fully close the tool, apply firm hand pressure, and insert the "GO" gage.
It must pass freely between the indenter tips.
"NO-GO" Gaging: Fully close the tool and apply firm pressure.
Insert the "NO-GO" gage — it may enter partially, but must NOT pass completely.

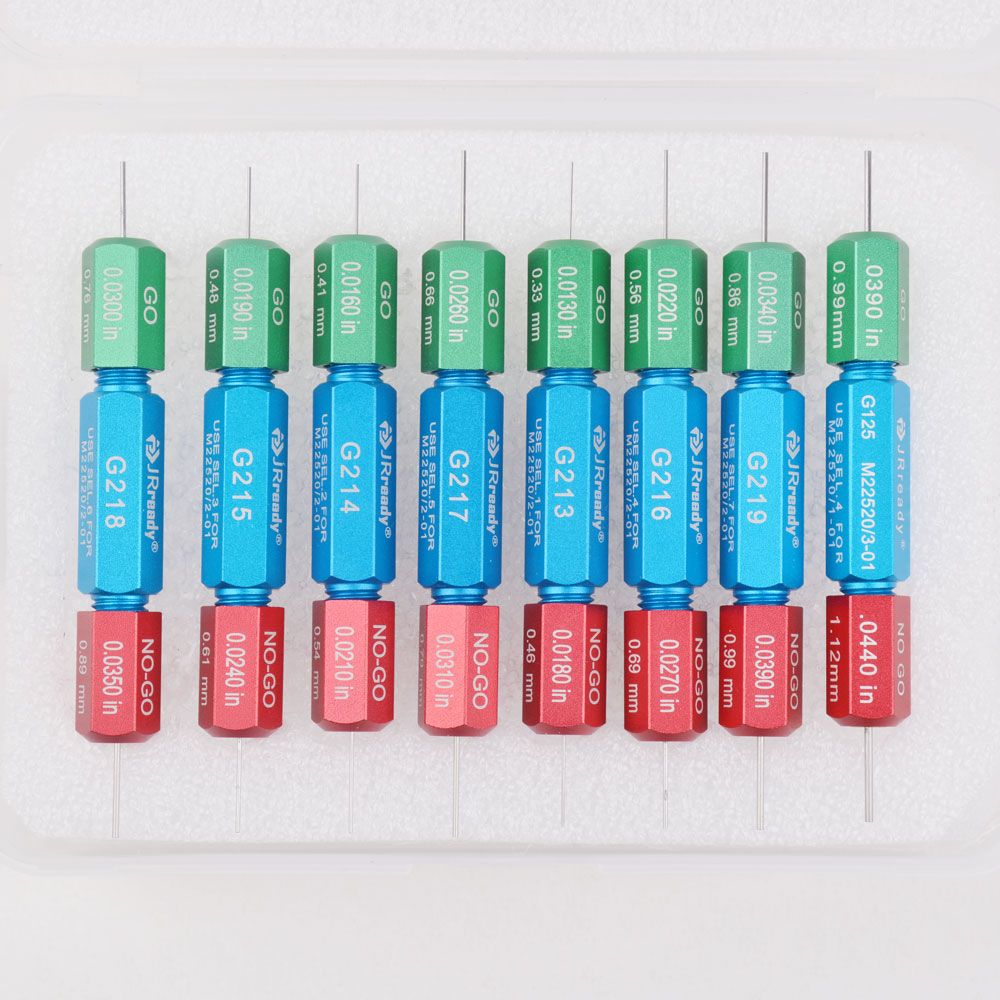

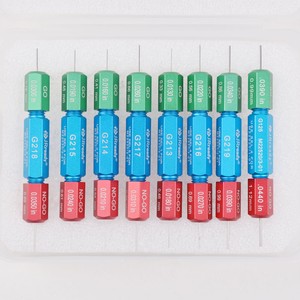

Indenter Working Diameter (in/mm)
| Gage Model |
GO Size |
NO-GO Size |
| G213 | .0130 | .0180 |
| G214 | .0160 | .0210 |
| G215 | .0190 | .0240 |
| G216 | .0220 | .0270 |
| G217 | .0260 | .0310 |
| G218 | .0300 | .0350 |
| G219 | .0340 | .0390 |
| G125 (M22520/3-1) | .0390 | .0440 |
Periodic gaging verifies that the crimp tool maintains original settings and tolerance.
4-/8-indent tools can be checked easily by using the correct Go/No-Go gage and following the instructions above.
