ST4030 Pneumatic Crimp Tool Kit — High-Volume Harness Production
Professional pneumatic crimping system designed for high-speed, high-repeatability crimping of round contacts in
aerospace, defense, railway communication, automotive and industrial cable assembly applications.
Key Advantages
- High Productivity: Capable of crimping 30–40 contacts per minute — ideal for production lines.
- Foot Pedal Activation: Air control system allows fast hands-free cycling, improving efficiency and operator comfort.

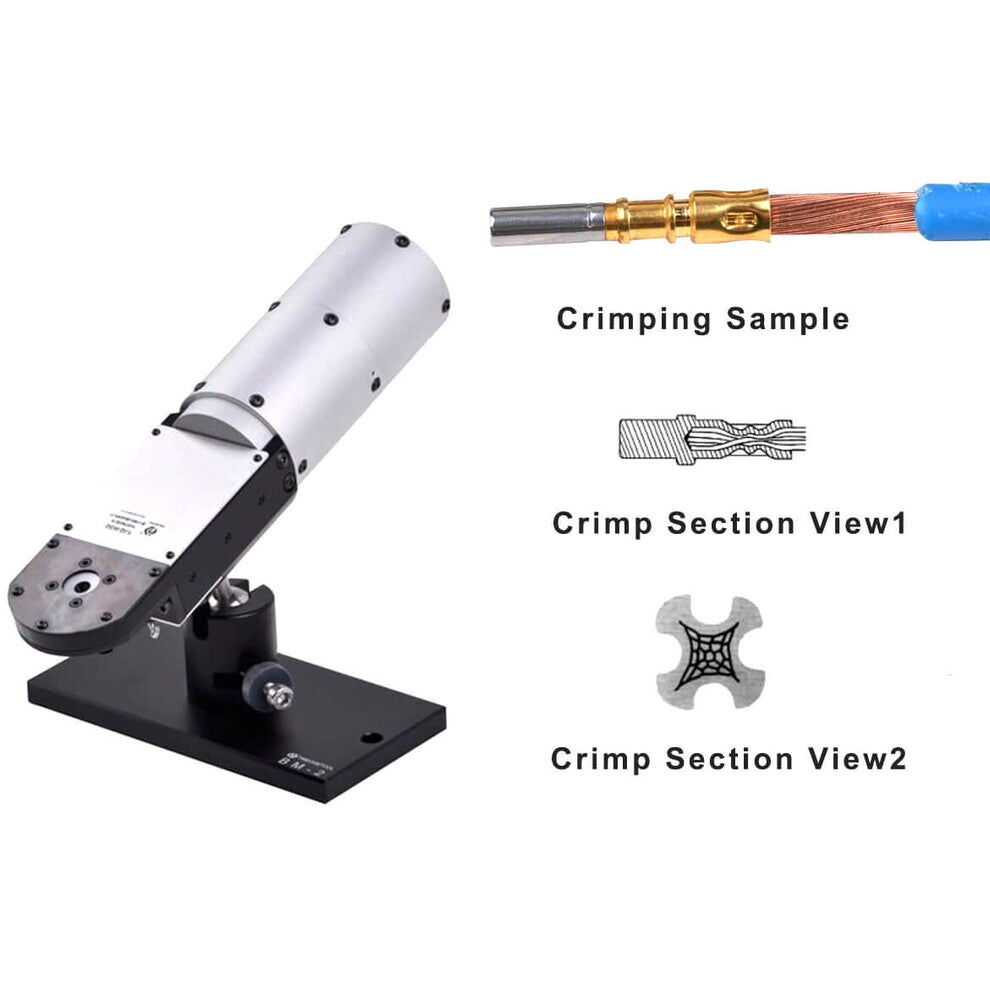

- 8-Indent Crimp Style: Provides MIL-spec tensile strength and consistent closed-barrel contact compression.

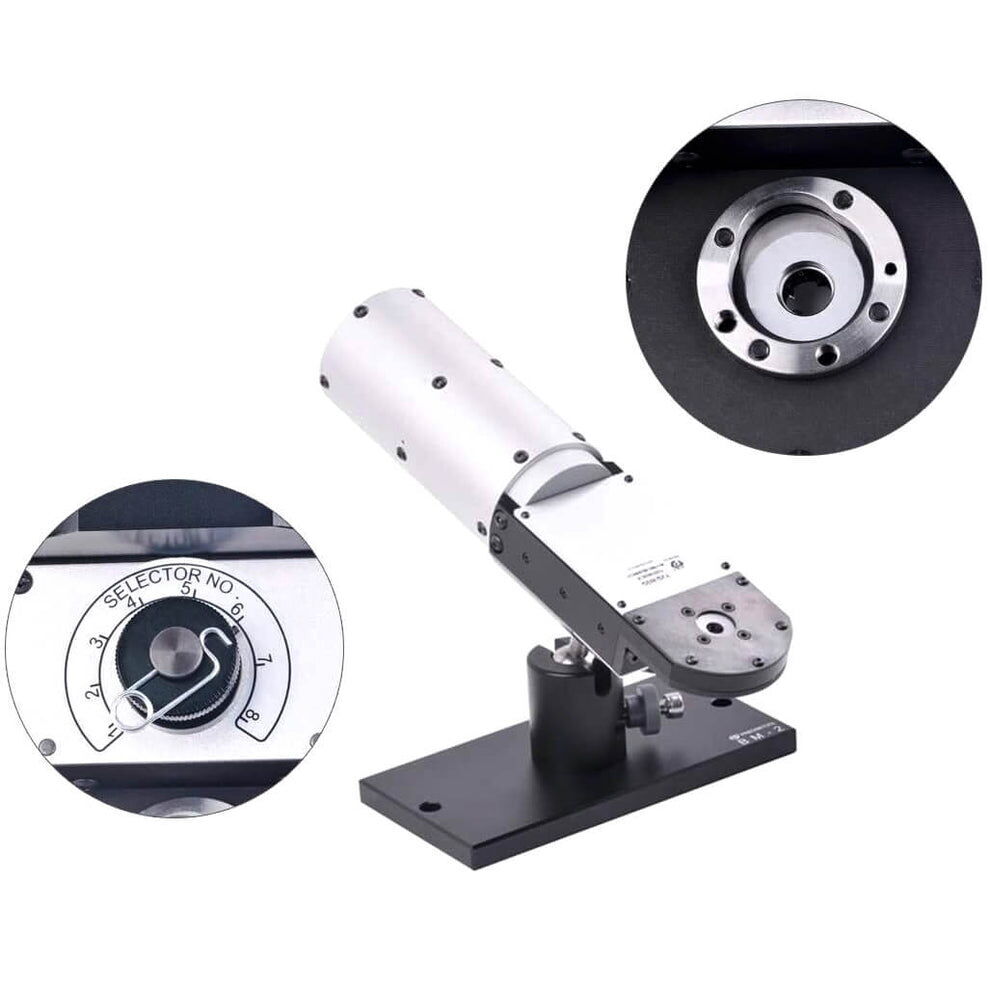

- Adjustable Bench Mount: 360° rotation + multi-angle adjustment for flexible workstation setup.
- Durable Molded Steel Tooling: High strength, corrosion-resistant, long service life.
Specifications
- Wire Range: 18–AWG (0.37–0.8107 mm²)
- Thru-Hole Diameter: Φ8.3 mm
- Working Air Pressure: 5.5–8.3 Bar
- Dimensions: 307.5 × 70.5 × 79.3 mm
- Weight: 2218 g

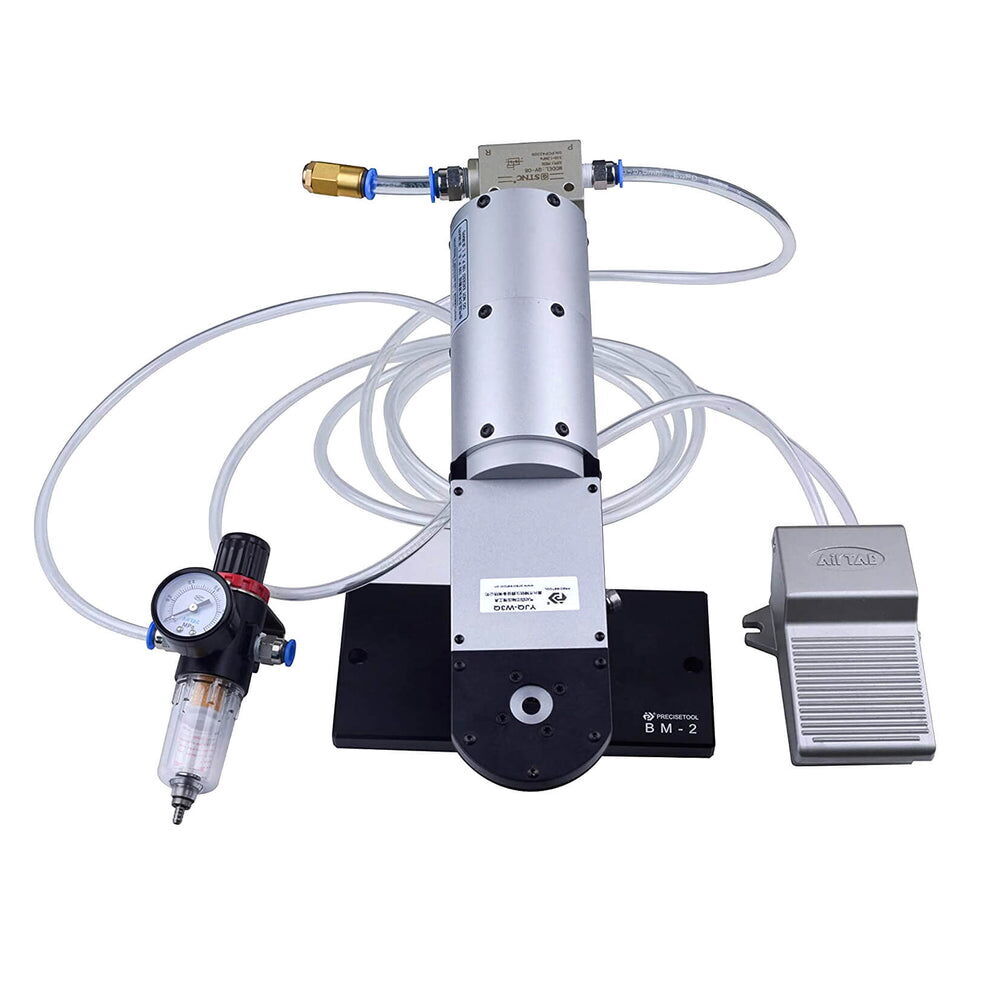

Package Contents
- 1 × YJQ-W3Q Pneumatic Crimping Tool

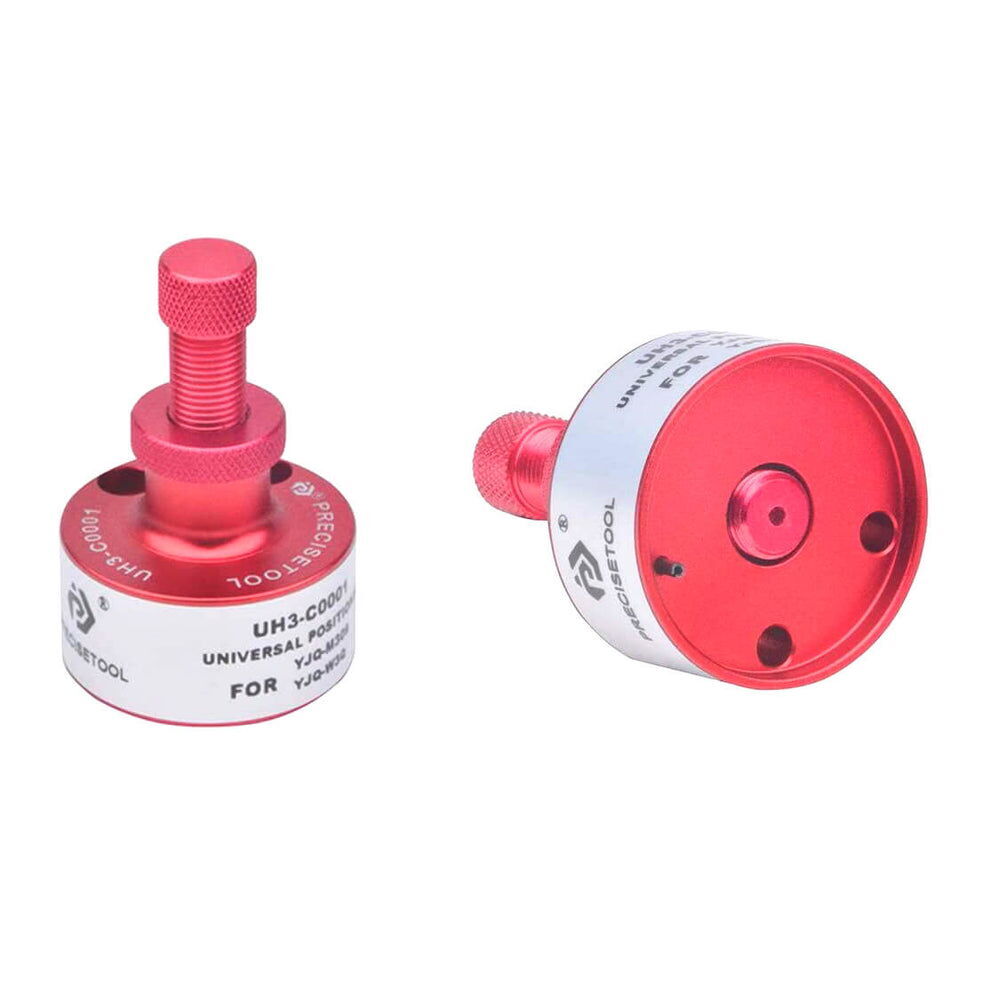

- 1 × UF3-C001 Adjustable Positioner
- 1 × BM-2 Bench Mount Holder
- 1 × PC-SUITE2 Air Control System (Foot pedal + air valve + regulator + exhaust valve + air hoses)
