JRready ST4011 Pneumatic Crimp Tool Kit: YJQ-W7Q M22520/7-01 Pneumatic Crimp Tool & 86-37 Adjustable Positioner 16-28AWG

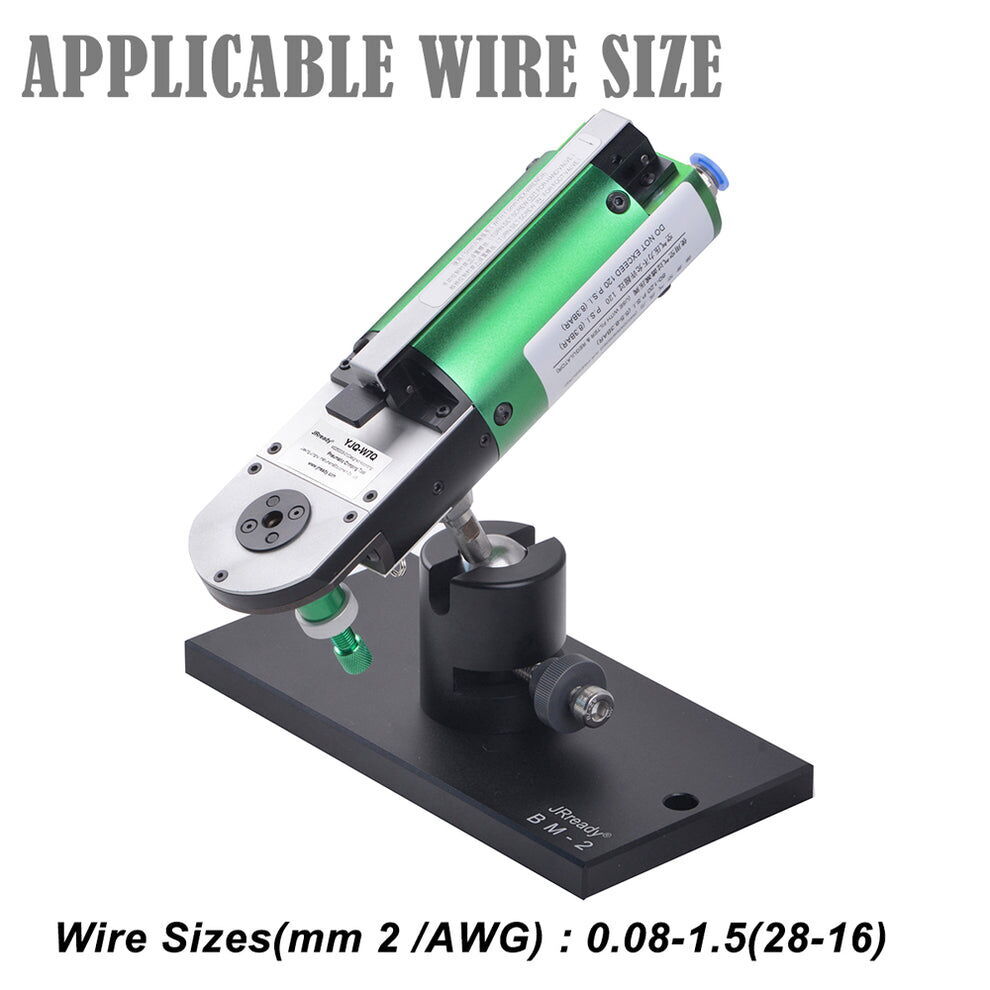

- Wire Crimp Range:16-28AWG (0.08-1.32mm²);
- Manual Version: ST2011.
- Crimp Style: Four-indent Eight-impression
YJQ-W7Q
Net weight: 2881 g / 6.35 lb
Small size, suitable for line operation.
8-impressions crimping to ensure high quality.
Force completely produced from compressed air to ensure safe & energy saving.

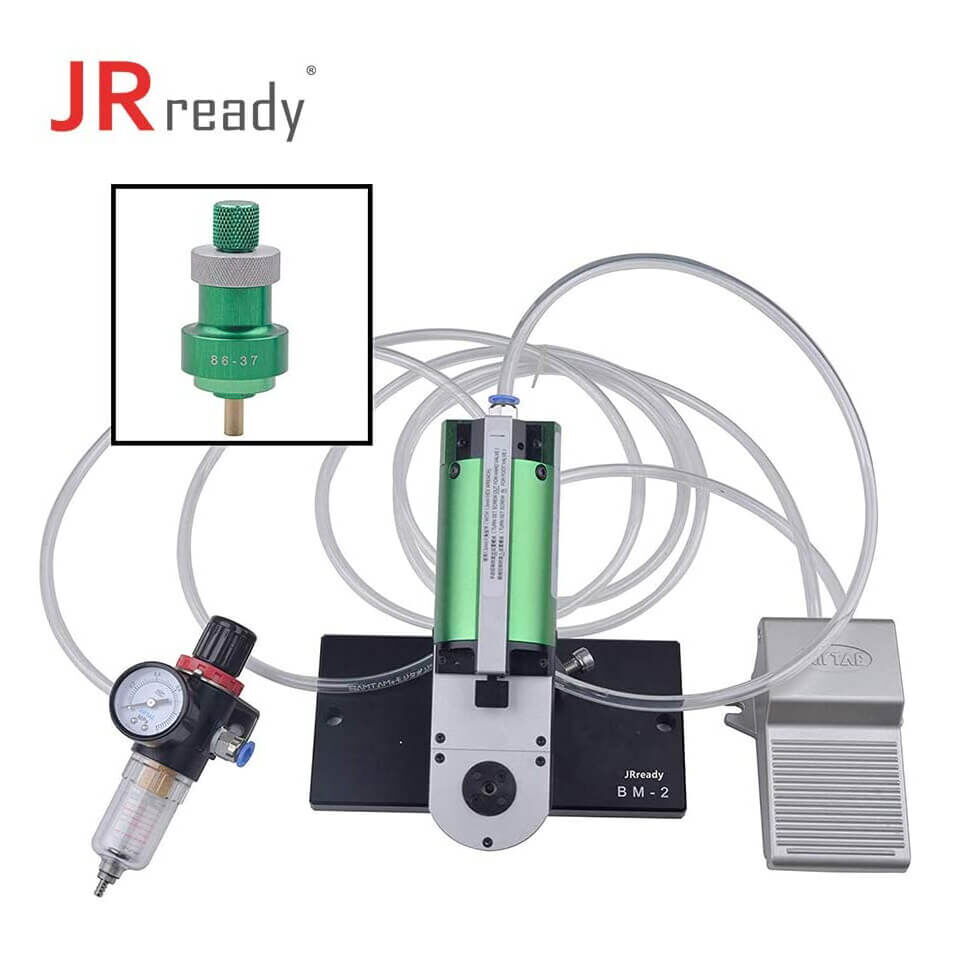

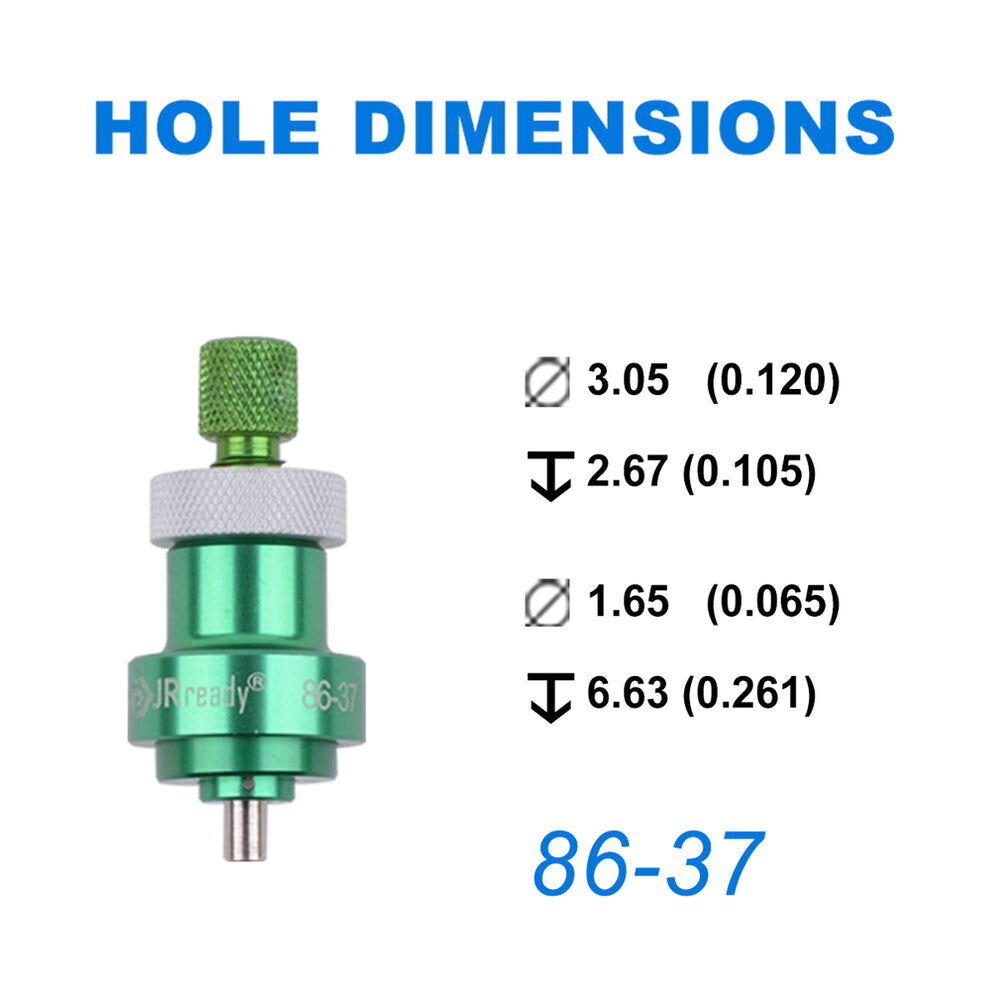

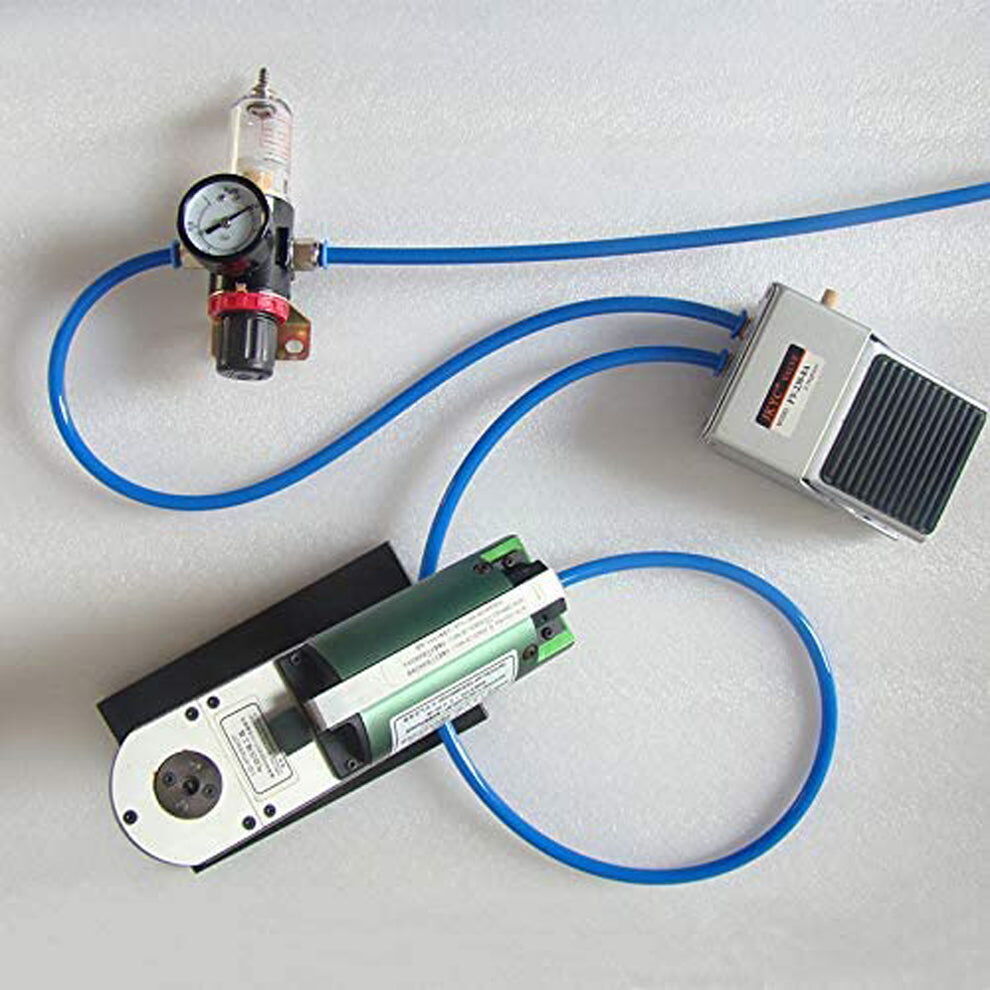

Package including: YJQ-W7Q Crimp Tool Frame & BM-2 Bench Mount & PC-SUITE1 Pneumatic Kit & 86-37 Universal Positioner.
Suitable for military connectors, heavy duty connectors, electric connectors, terminals, wiring harness manufacturing industry, cable assembly.
THE MODE SWITCH INSTRUCTION
Setting the setting screw by 1.5 mm hex wrench.
Set the screw 0-1mm above the reference plate when in hand value control.
Set the screw 1-2mm into the reference plate when in foot value control.
PLEASE NOTE: Do not force the screw out to prevent the screw mechanism from damaging.
JRDTOOLS specializes in designing and manufacturing hand/ pneumatic indents crimping tools, open frame die crimper, positioners, turret heads for wire crimpers . We make every efforts to provide our customers with tool selection services, product customization services, after-sales services and product maintenance services.
