Equivalent M22520/1-04 Adjustable 3-Core Universal Positioner
Designed for MIL-SPEC crimping tools to provide standardized and accurate crimp positioning every time.
? Specification Standard
Designed according to M22520/1-04. Compatible with M22520/1-01 crimp tools.
? Compatible Tools
- DMC AF8 Crimp Tool
- JRD-ASF1 Hand Crimp Tool
- YJQ-W1A & YJQ-W1Q Pneumatic Crimp Tools
? Key Benefits
- Provides a standardized and repeatable crimp position.
- Makes terminating MIL-spec contacts faster and easier.
- Improves consistency across different wire harness production tasks.

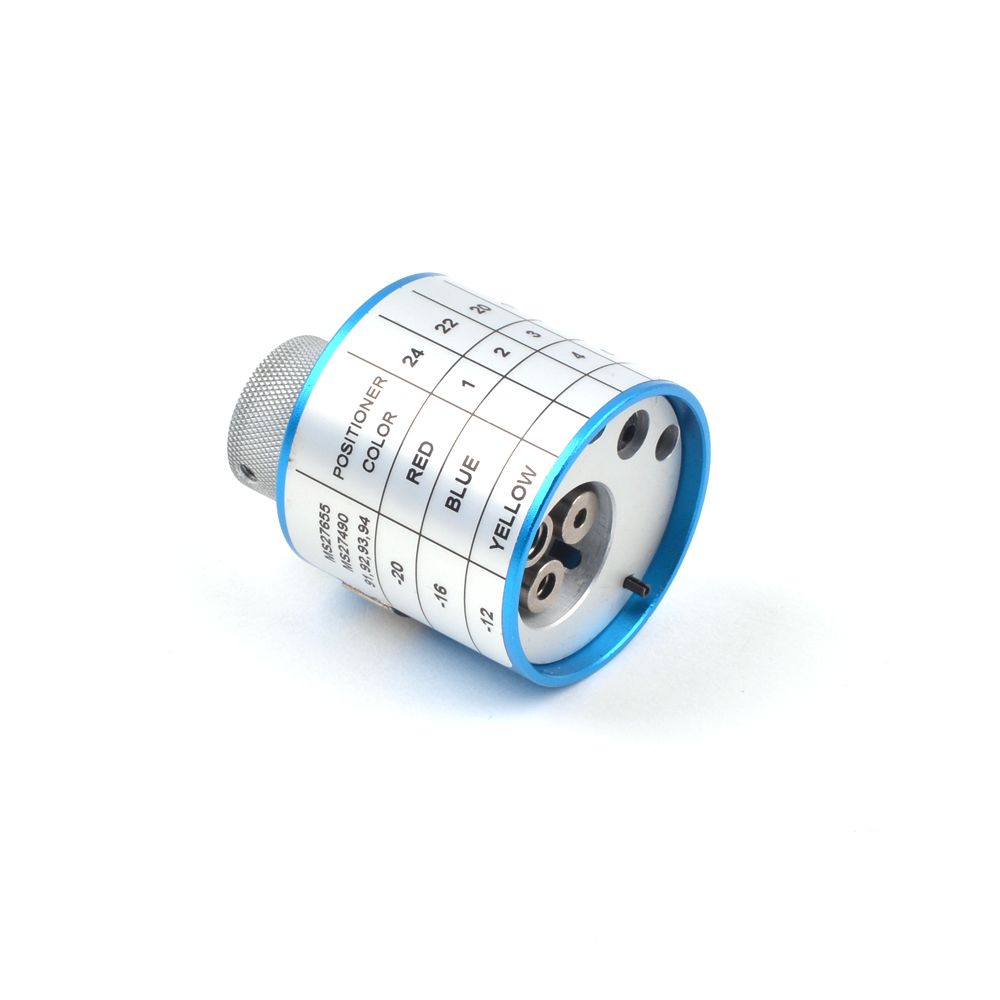

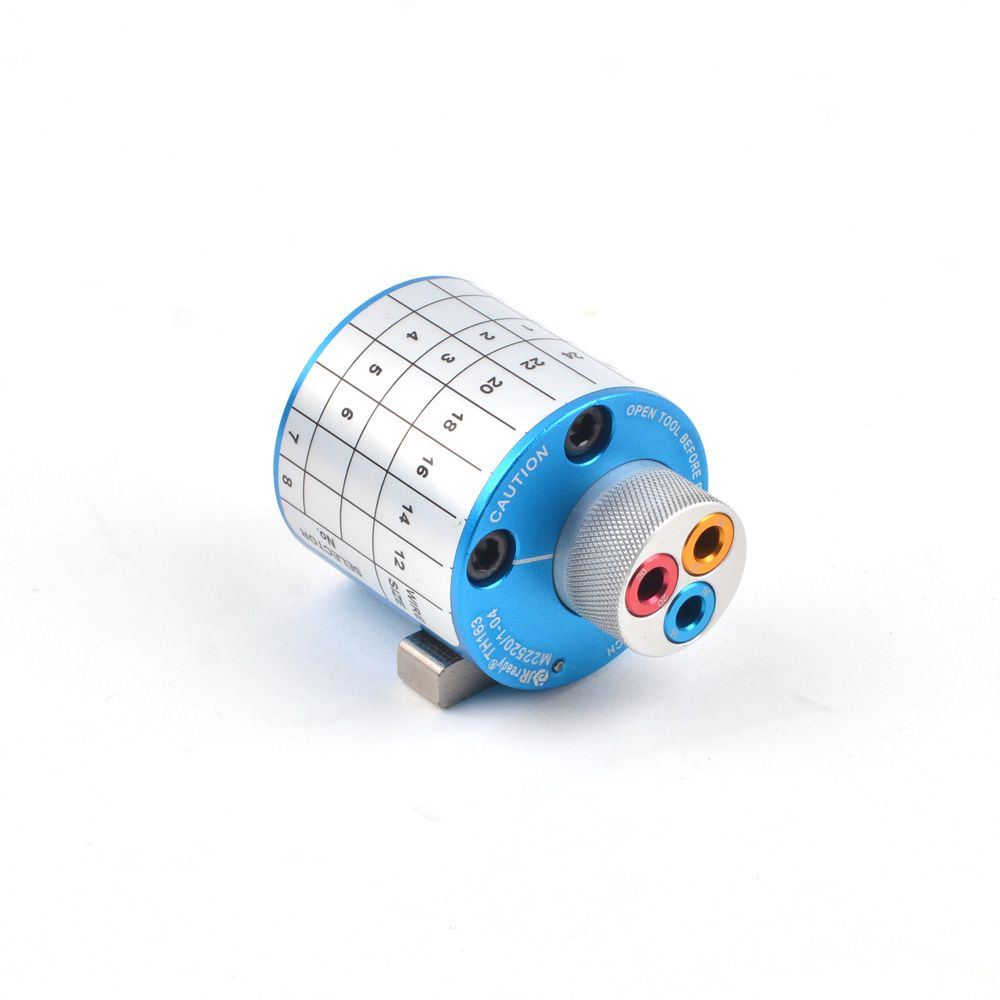

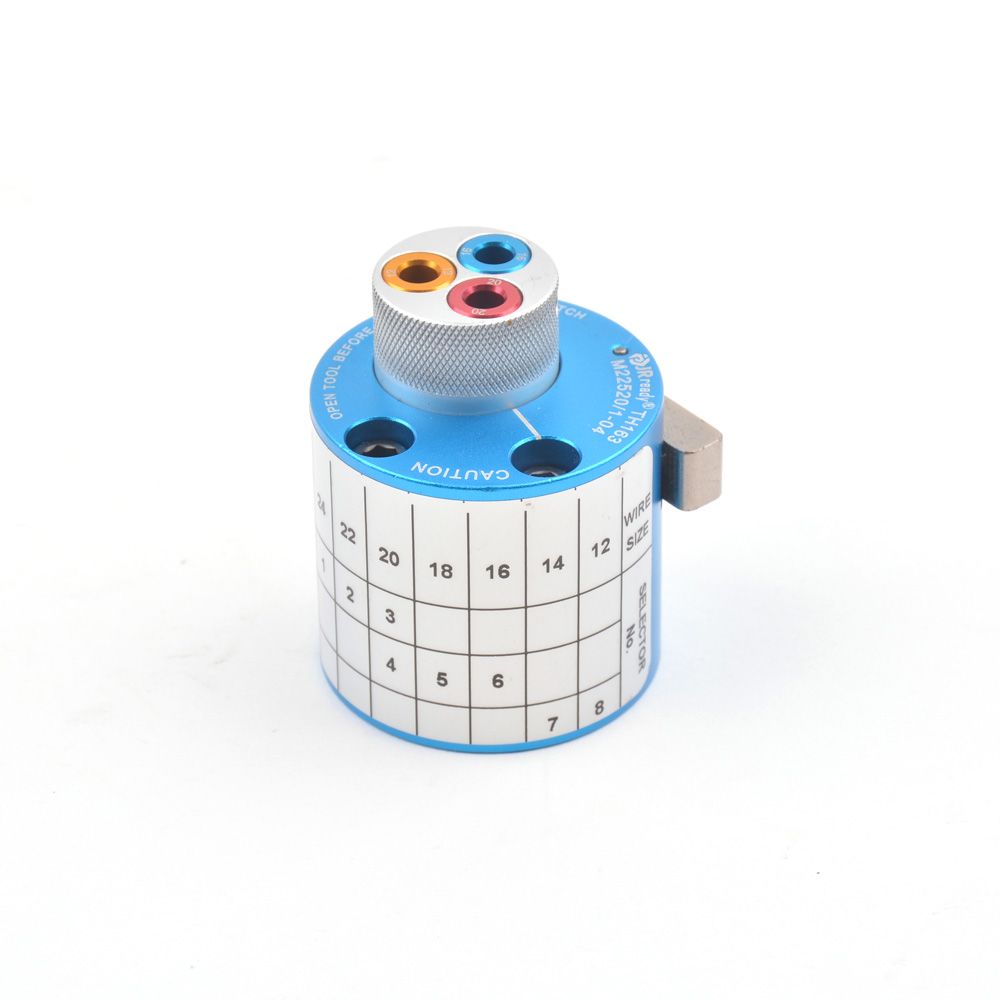

? 3-Core Rotating Selector Design
No need to swap positioners when crimping different contacts.
- Contains 3 interchangeable cores.

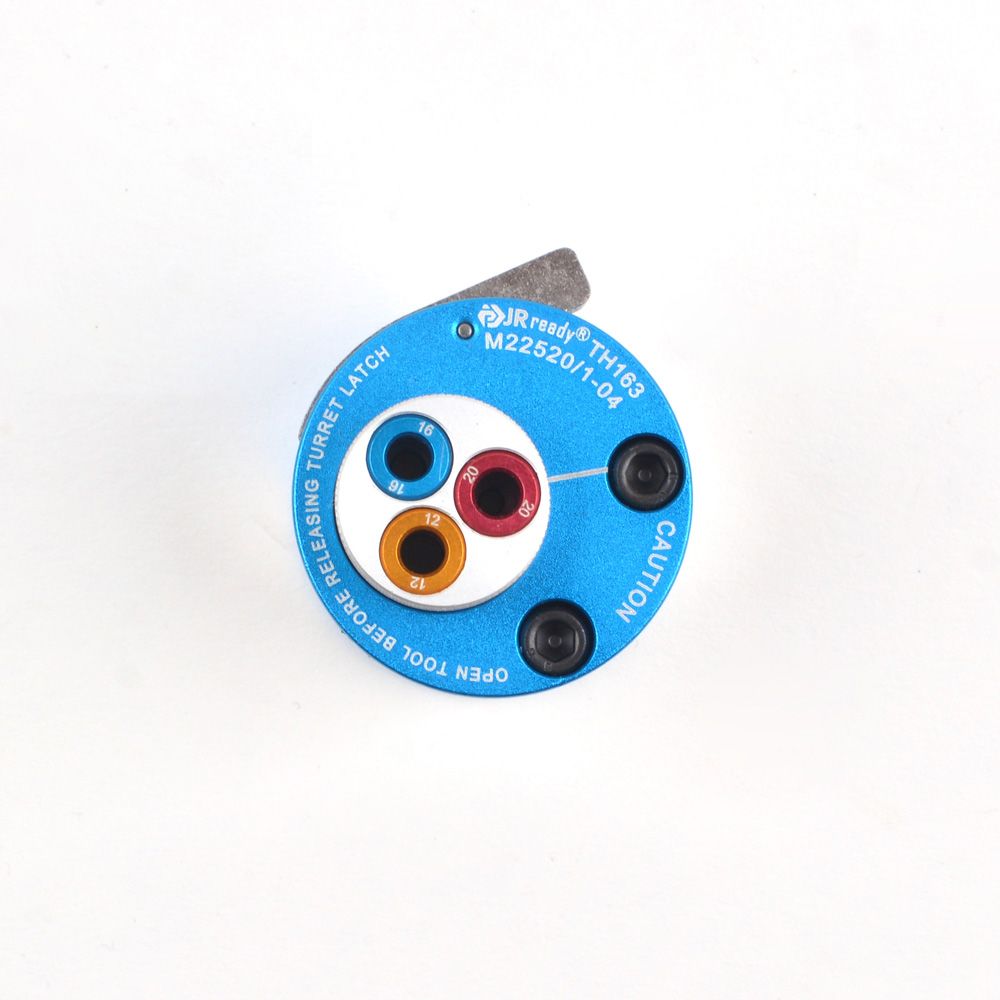

- Each core corresponds to a different sleeve color: Red / Blue / Yellow.
- Select the correct color based on the contact terminal size.
