JST2511-EP Pneumatic Crimping Kit — For HAN & D-SUB 5A Contacts
Complete pneumatic crimping solution designed for crimping 5A contacts used in HARTING HAN, TE, WAIN, and
D-SUB connector systems. Ideal for high-volume production, aviation harnessing, railway communication systems,
and professional field service.

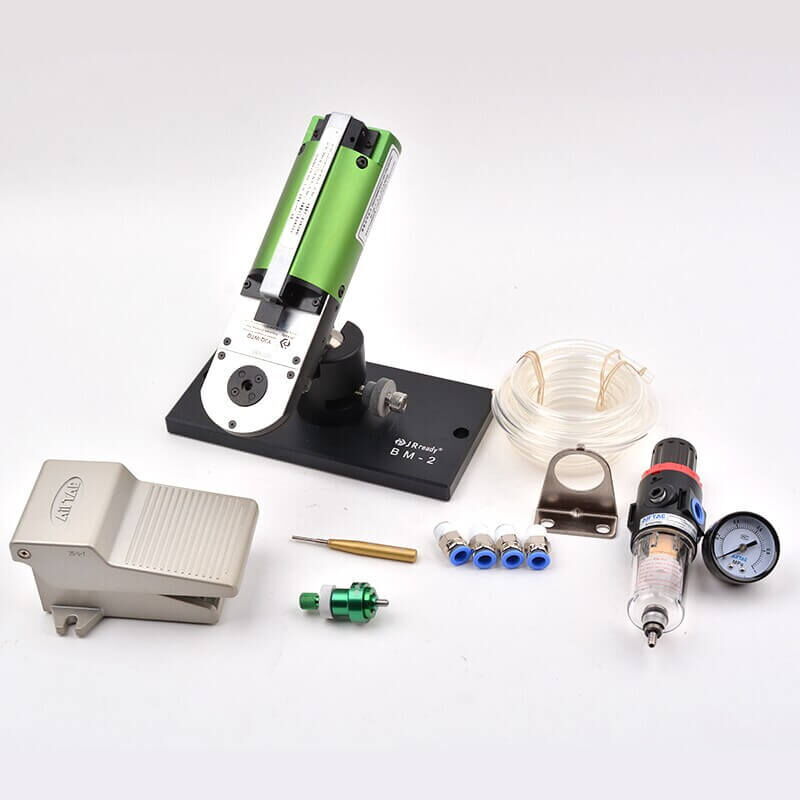

Kit Includes

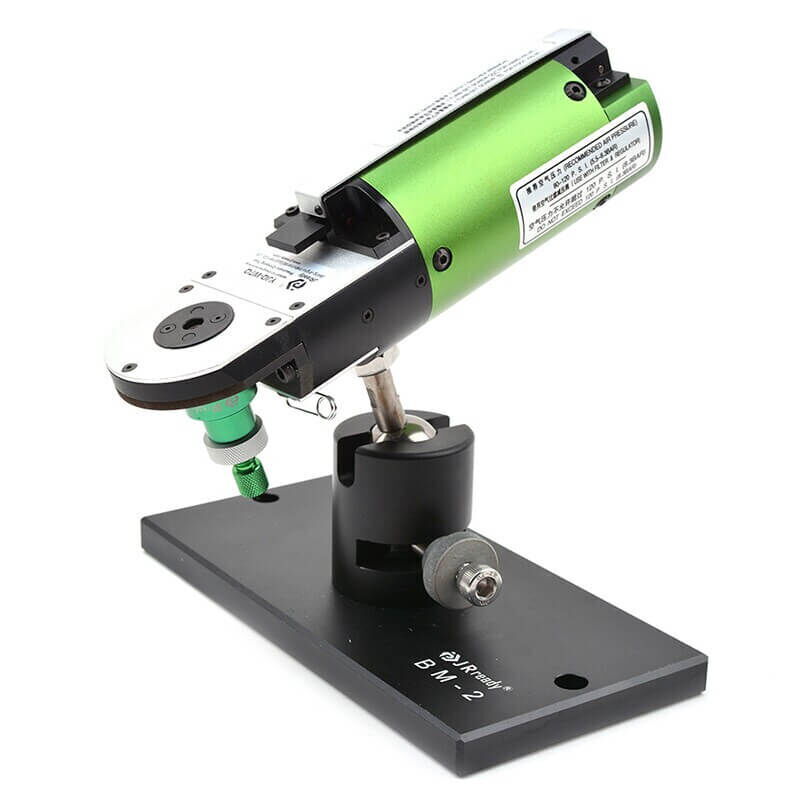

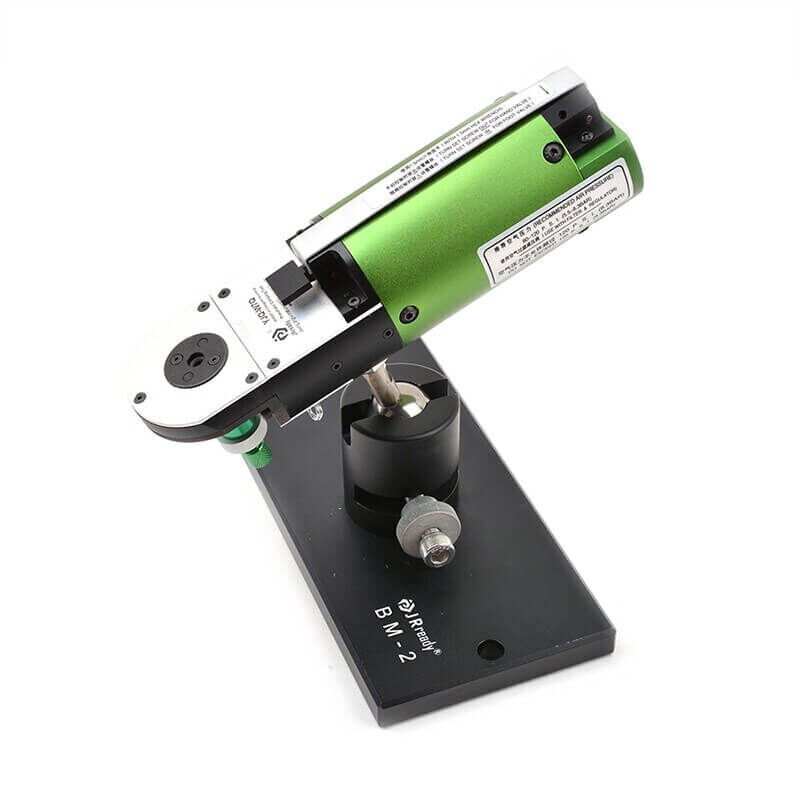

- YJQ-W7Q Pneumatic Crimping Tool (M22520/7-01 Compatible)

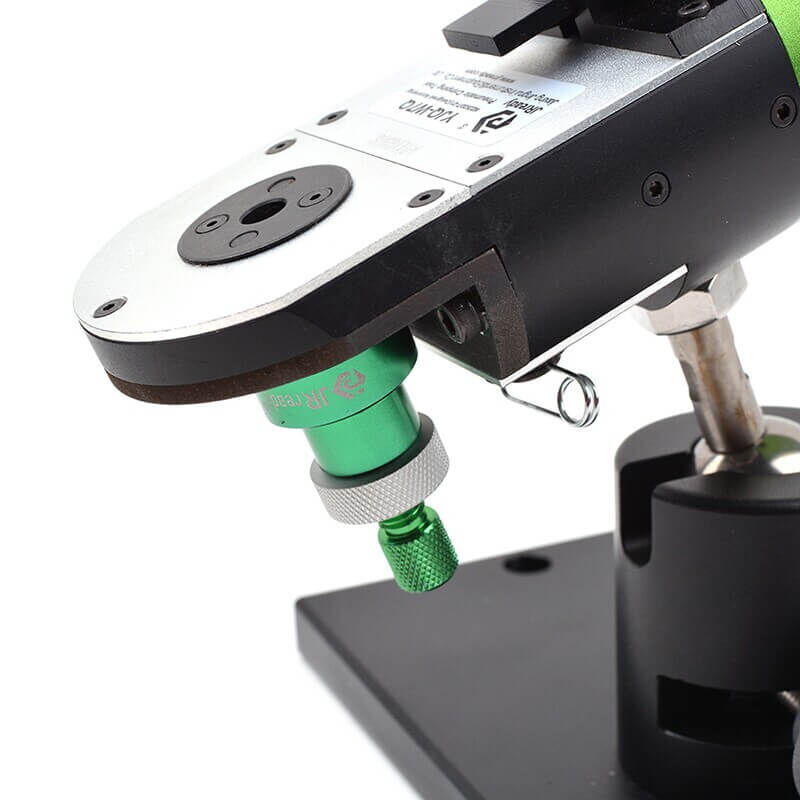

- 86-D-SUB Adjustable Positioner
- PC-SUITE1 Air Pressure Control System (Valve + Regulator + Air Pipes)
- TL08 Contact Removal Tool
Features
- Crimp Type: Four-Indent MIL-Standard Crimp
- Wire Range: 18–28 AWG (0.08–1.32 mm²)
- Hand Tool Equivalent: YJQ-W7A (manual version)
- Gage Compatibility: Uses G145 GO/NO-GO Gage (purchased separately)
- Positioner: 86-D-Sub seat ensures correct crimping depth and alignment
- Removal Tool (TL08): Safe contact extraction without damaging connector housings
Application
Suitable for:
• HARTING (HAN D-SUB)
• TE (D-SUB)
• WAIN (HM, D-SUB, HR23)
• High-speed railway harnesses
• Aerospace and aviation cable assembly
• Industrial communication systems
