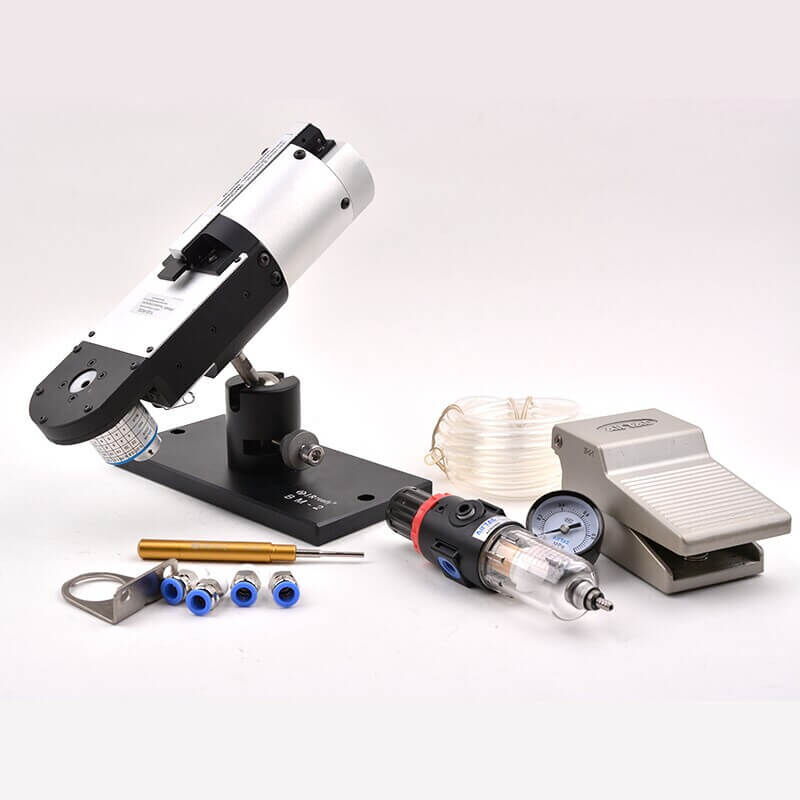

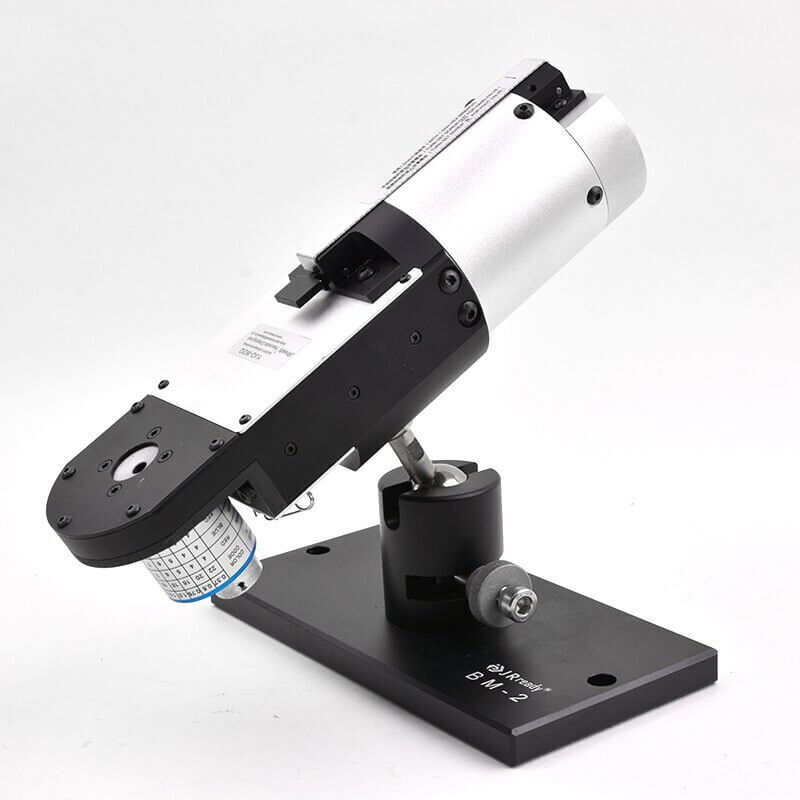

• The kit includes YJQ-W2Q pneumatic crimping tool,TH493-D positioner,PC-SUITE1 air control kit,BM-2 adjustable base mount and TL00 removal tool
• YJQ-W2Q is compatible with the M22520/2-01 which is widely used for the crimping of wires and contacts in electronic connectors

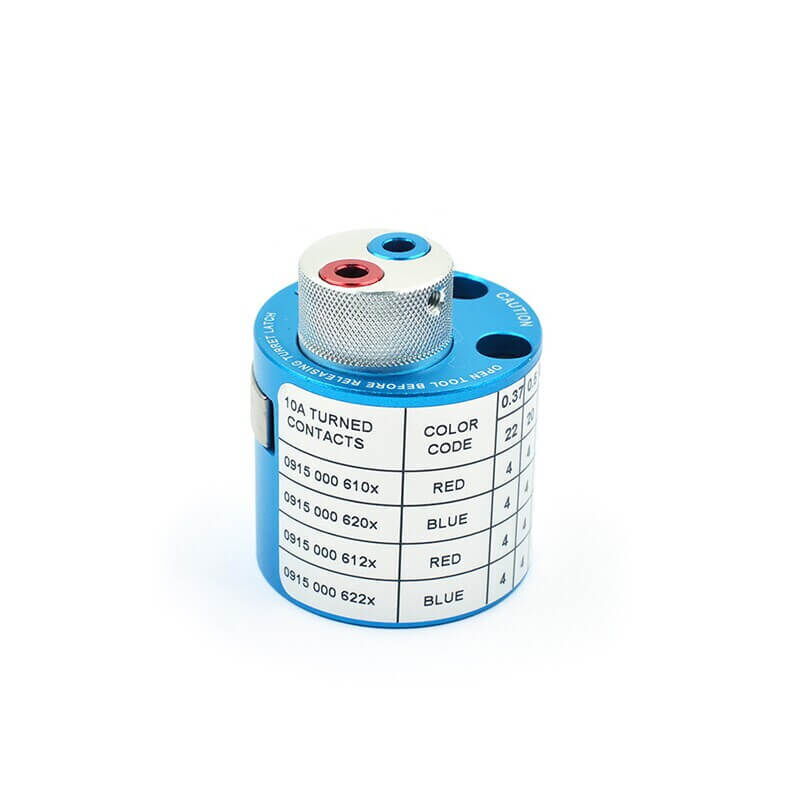

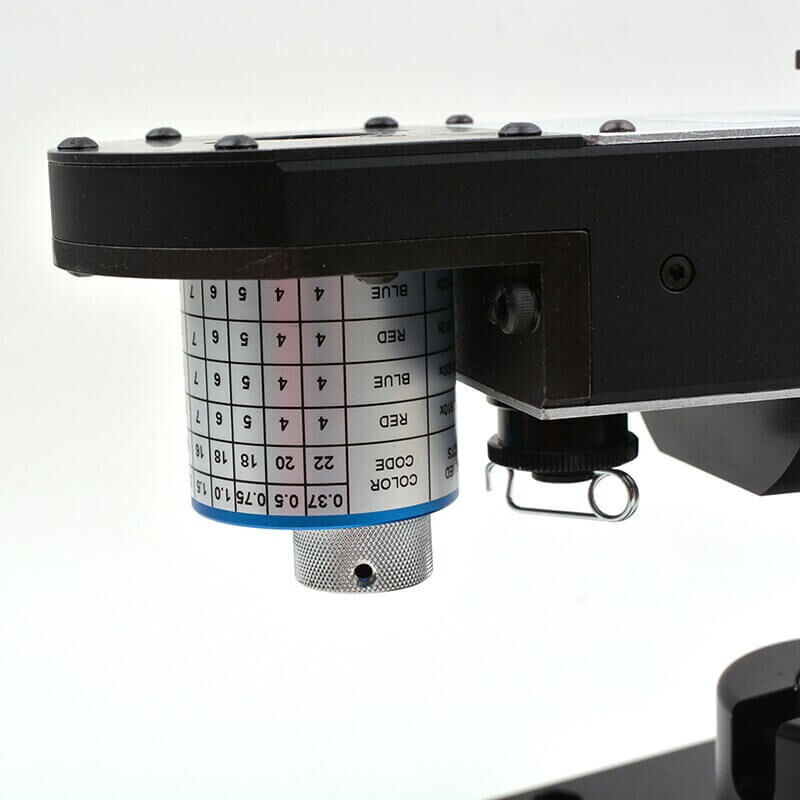

• TH493-D positioner ensures the accuracy and consistency of the crimp position. The positioner can be rotated to adjust the crimp position. Suitable for 10A Sockets & Pins in Han D series connectors.
• TL00 removal tool is used to remove round contacts in HARTING, WAIN, TE Han D series connectors without any damages to the electronic connectors
• The tool kit applied to connectors of fields in railway, electrical, Suitable for HARTING(HAN D/HAN DD/HANQ),TE(HD/HDD) series connectors

Application

Name	Contact drawing	Harting connector model	Harting contact model	Wain connector model	Wain contact model
10A contact		Han D Series（09210073031 09210153001 09210253001）  HAN Q Series（09120053001 09120073001 09120123001）  HAN DD Series（09160243001 09160423001 09160723001）	09150006104	HD HDD HM HK HQ insert	CDSM -0.37
			09150006103		CDSM -0.5
			09150006105		CDSM -0.75
			09150006102		CDSM -1.0
			09150006101		CDSM -1.5
			09150006106		CDSM -2.5
			09150006204		CDSF-0.37
			09150006203		CDSF-0.5
			09150006205		CDSF-0.75
			09150006202		CDSF-1.0
			09150006201		CDSF-1.5
			09150006206		CDSF-2.5
			09150006124		CDGM -0.37
			09150006123		CDGM -0.5
			09150006125		CDGM -0.75
			09150006122		CDGM -1.0
			09150006121		CDGM -1.5
			09150006126		CDGM -2.5
			09150006224		CDGF-0.37
			09150006223		CDGF-0.5
			09150006225		CDGF-0.75
			09150006222		CDGF-1.0
			09150006221		CDGF-1.5
			09150006226		CDGF-2.5

Removal Instruction

Step 1: Prepare the removal tool and find the contact to be taken out
Step 2: Insert the removal tool into the electric connector until it reaches the bottom
Step 3: Push the contact out gently
Step 4: Remove the contact
