JRready ST4020 – YJQ-W2Q Pneumatic Crimping Kit
PNEUMATIC
Bench-Mount Kit
- Wide crimp range: 12–26 AWG (0.128–3.33 mm²)
- Mil-Standard 8-indent crimp for maximum tensile strength
- Cycle-controlled ratchet for consistent, precise crimps
- Air-powered, safe and efficient for line production
★ Key Benefits
- Virtually limitless application across wire sizes within 12–26 AWG
- Reliable MIL-Standard 4-way/8-indent crimp pattern
- Professional build for repetitive production use
- Environment-friendly, low-effort air drive
✔ Standards & Compatibility
- Tool per MIL-C-22520/1-01
- Positioner per MIL-C-22520/1-05
- For solid contacts used in military & proprietary programs
- Supports Harting, Wain, TE and similar connector families

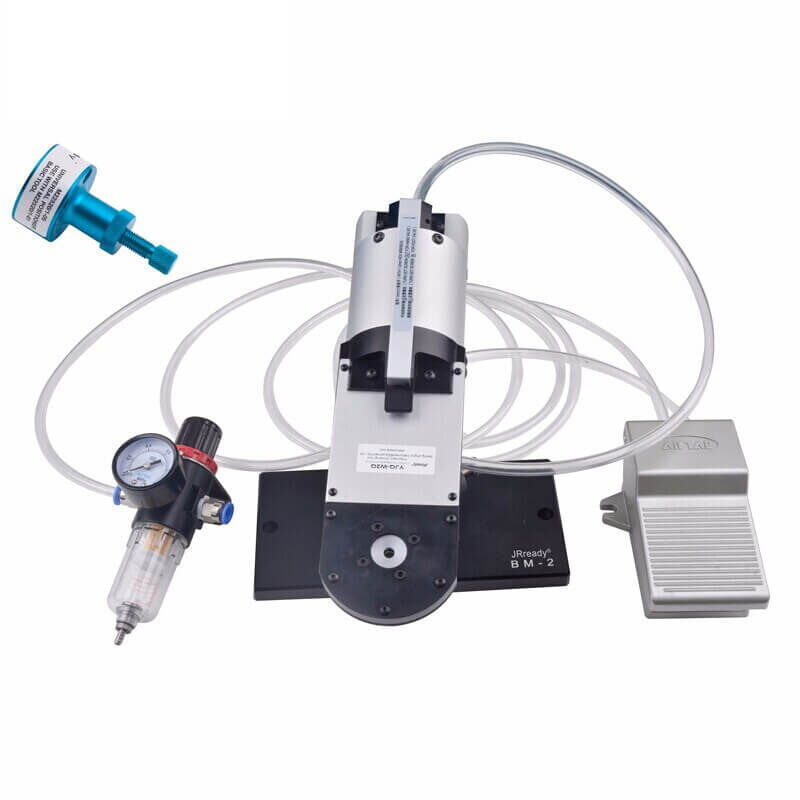

? Included Components & Control Modes
- YJQ-W2Q Pneumatic Crimp Tool

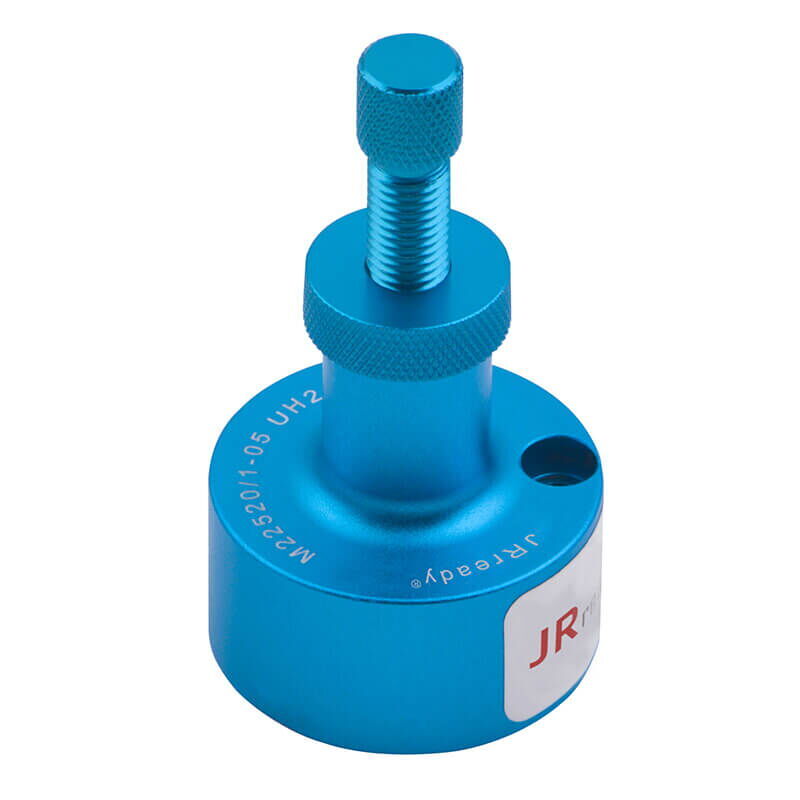

- Universal Positioner

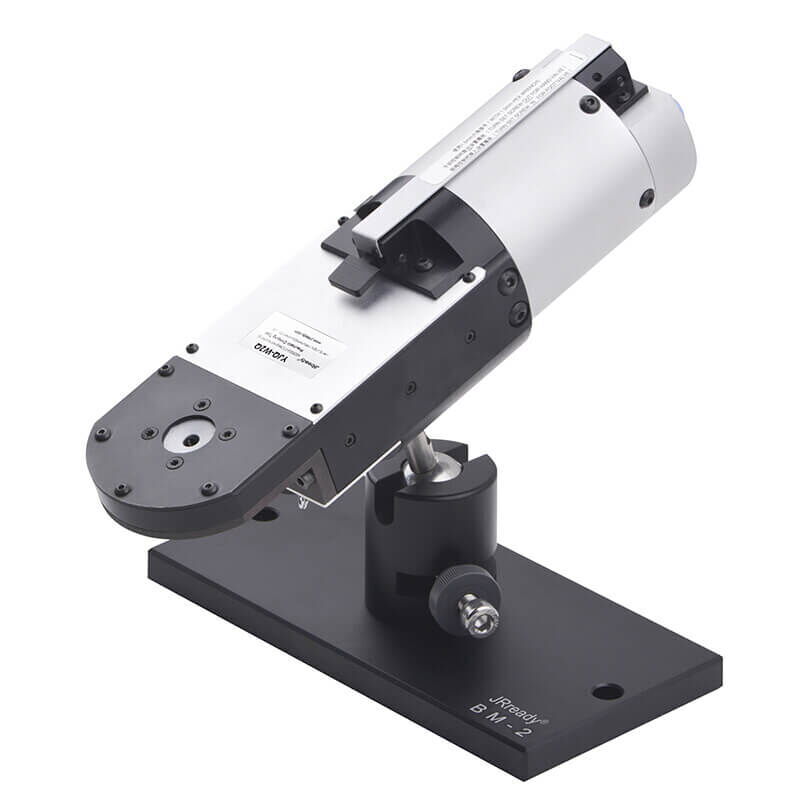

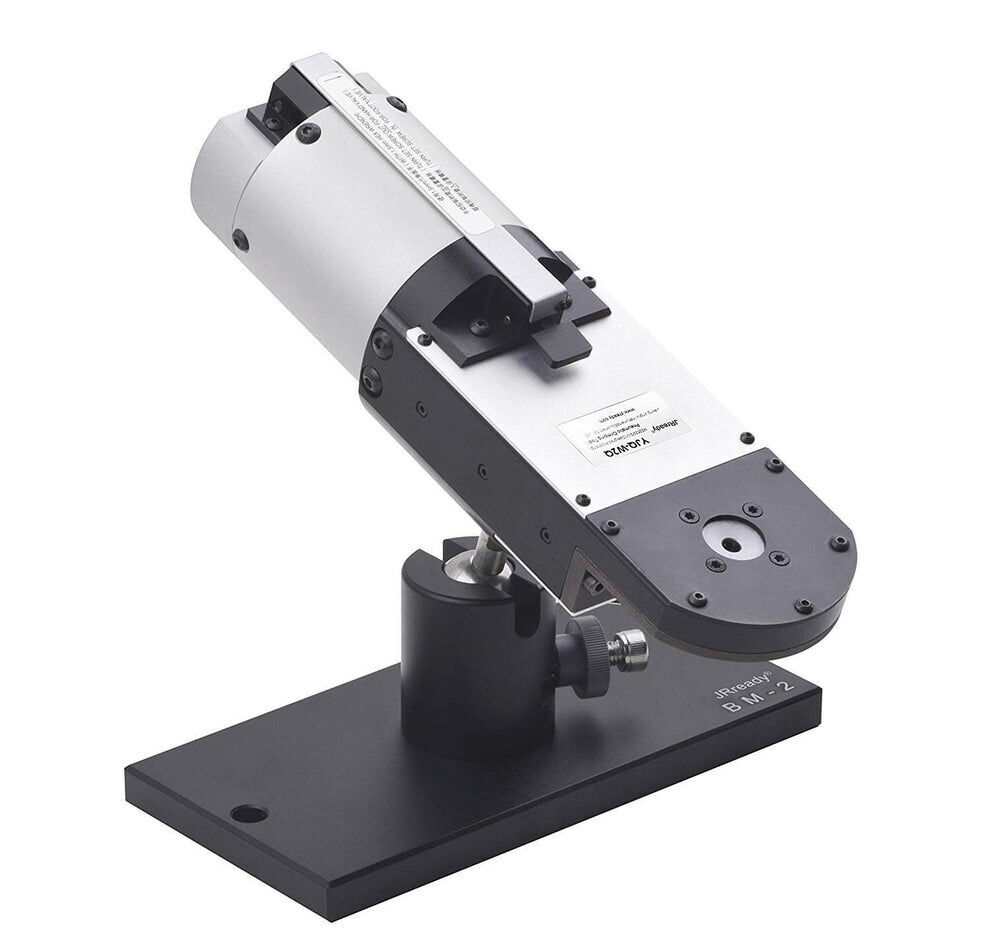

- BM-2 Adjustable Bench Mount
- F2 Air Control System (Filter Regulator)
- Foot Valve & Air Pipes
- Control Modes (2):
- Figure 1: Foot-valve control
- Figure 2: Hand-valve control
- Includes 1.54 mm hex wrench
Designed according to MIL-C-22520 / 1-01; widely used for crimping wires and contacts in both military and proprietary applications.
