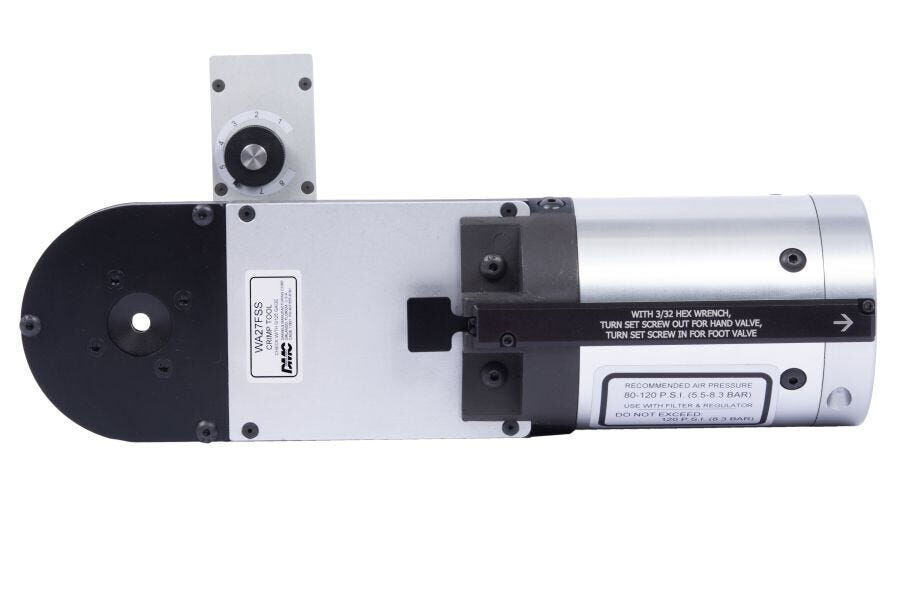

Pneumatic Indent Crimp Tool with Side Selector - Equivalent to AF8

The WA27F is the direct equivalent of the AF8 Standard Indent Crimp hand tool for size 12-26 wire with a Side Select.  The WA27F accommodates TH-xxx MIL-standard and commercial series turret heads or TP-xxx MIL-standard and commercial series positioners.

Length: 10”
Diameter: 2 3/4”
Weight: 50 oz.

Optional equipment includes the WA10A Foot Valve, the WA27RF Air Regulator and Filter, and the BM-2A Bench Mount, sold separately.

Adding "SS" to the part number of the WA series pneumatic crimp tools will apply to the "side-select" versions. DMC Pneumatic tools are often mounted on a Bench Mount, and some find it inconvenient to set or check the setting of the crimp depth selector when the tool is mounted for benchtop use. DMC resolved this issue by creating a version of the tool which moves the crimp depth selector to the side of the tool in a “looking up” position. These tools have the same crimp depth settings as the original tools, but with the knob in a more convenient position. A retrofit kit is also available for converting standard tools to Side Select tools.
