ST5164 Contact Retention Test Kit
Used to verify the retention force of pins and sockets in electrical connectors. Ensures proper seating and
secure holding strength of power contacts. Quick and easy to use in field service, maintenance, harness production
and quality inspection environments.

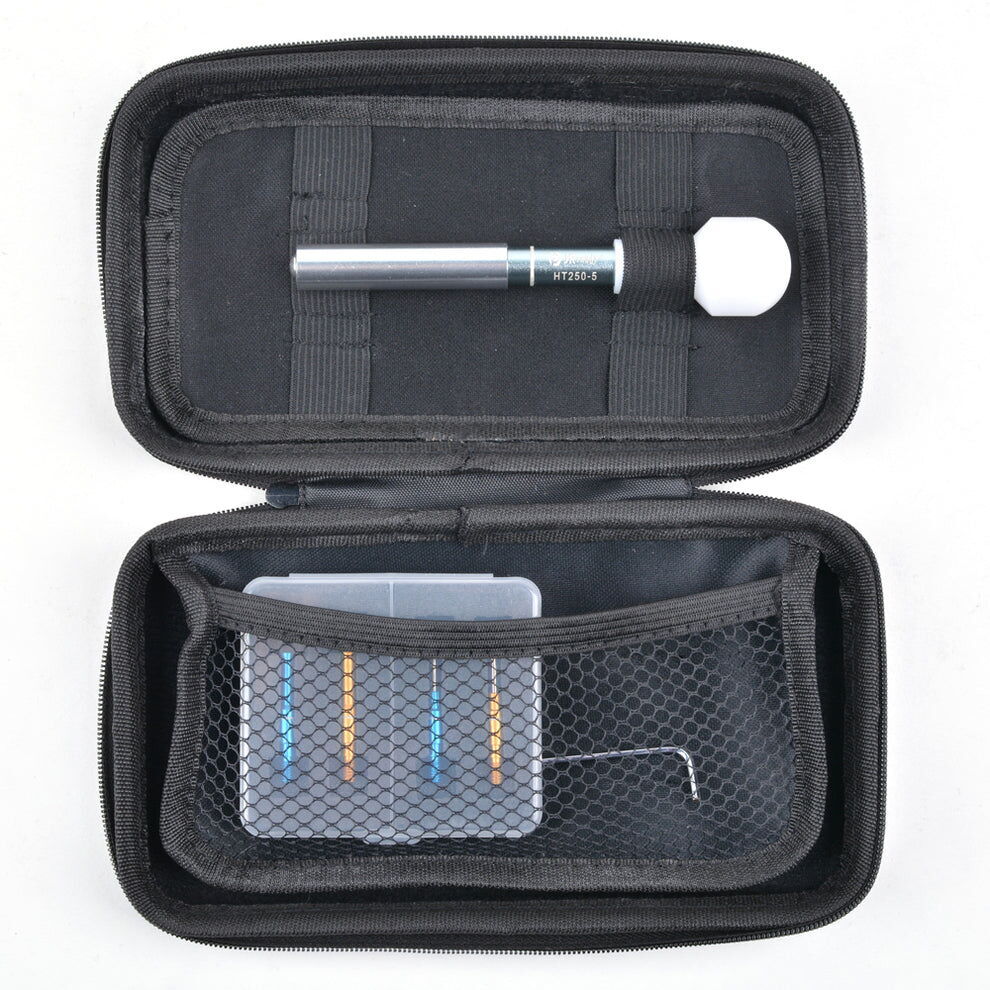

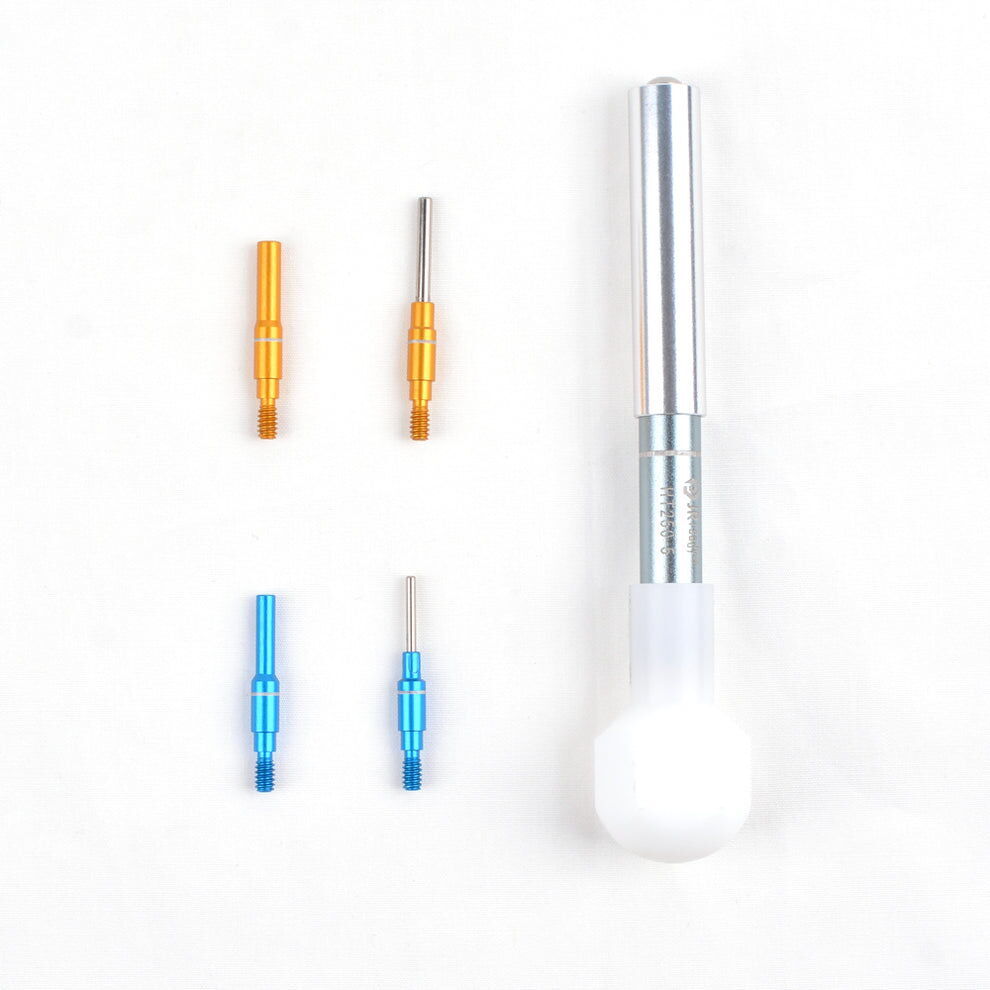

Package Includes
HT250-5-68-012-01 + 68-018-01 + 67-012-01 + 67-018-01 Retention Tester Set

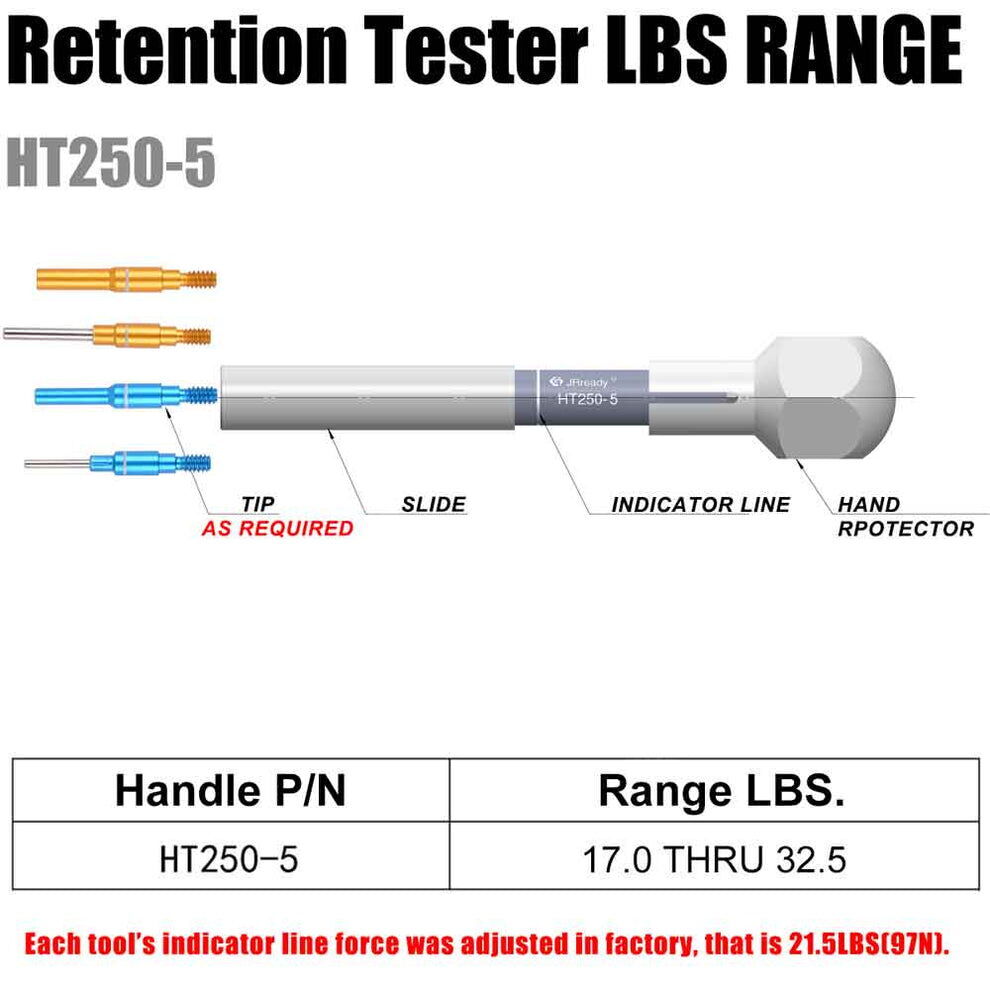

Force Range
- Force Rating: 17.0–32.5 lbs (7.7–14.7 kgf)
- Factory Calibrated: Each tool is pre-set to 21.5 lbs (9.7 kgf) of linear pull force
- Custom calibration available upon request
How to Use

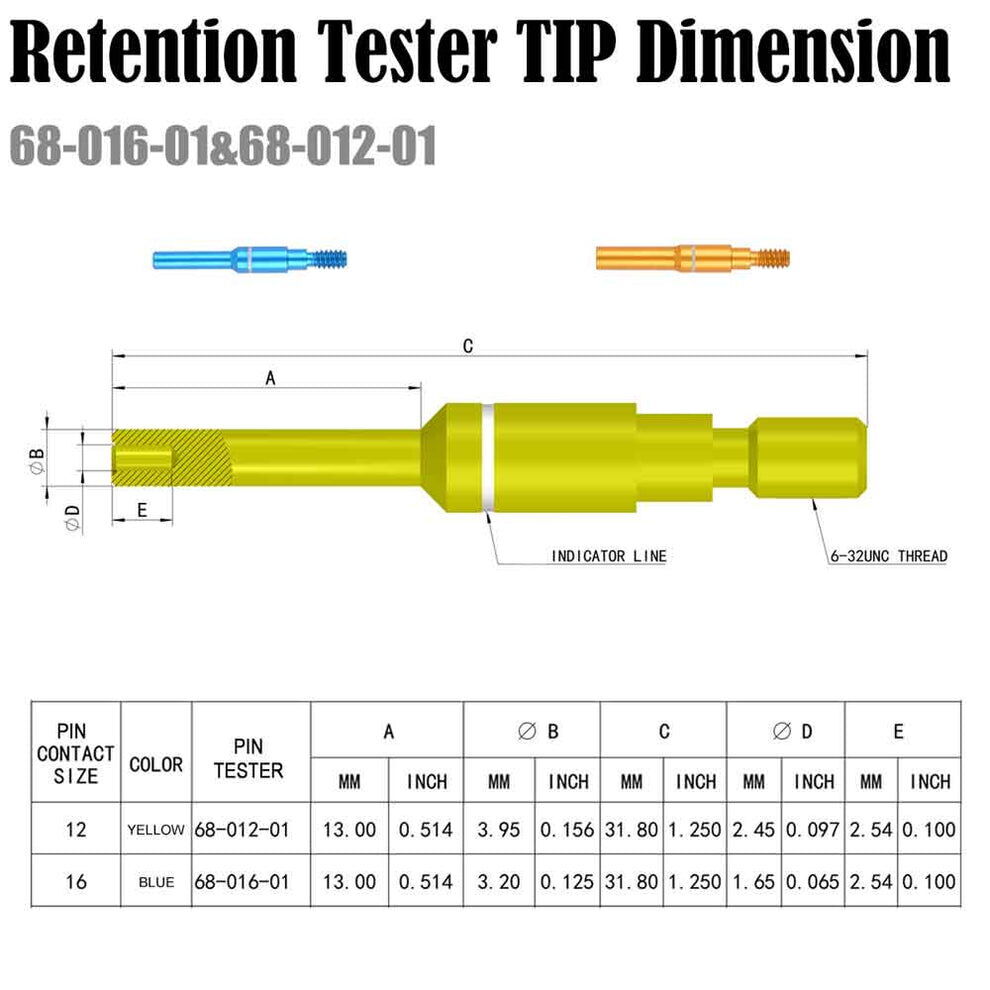

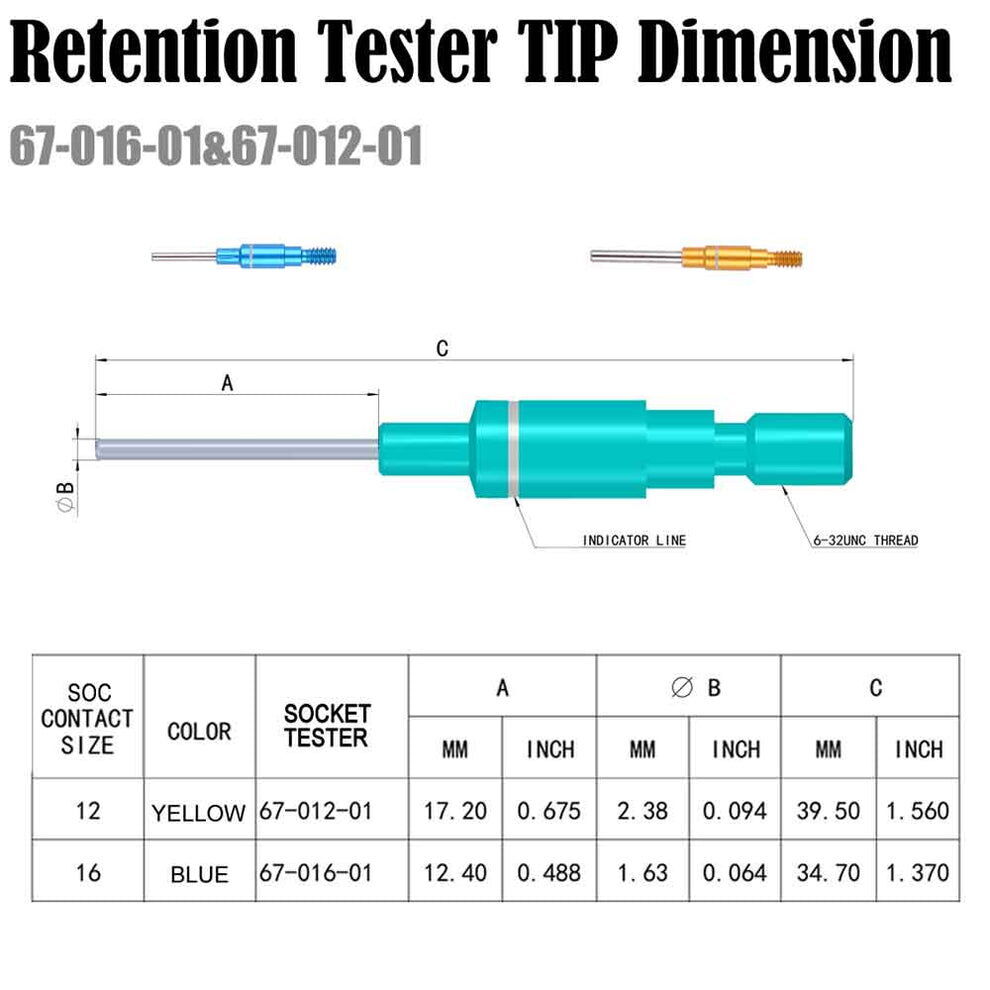

- Select the correct tester tip (pin tip for male pins, socket tip for female sockets).
- Insert the test tip into the connector so the tester and contact are aligned straight.
- Apply force steadily and hold during the measurement.
- If the contact releases below the expected force, the retention is insufficient.
Note: Retention testers are used as a comparative inspection tool and not as a destructive pull test device.
Application
Used across military connectors, aviation wiring, heavy machinery harnesses, automotive service, rail systems,
industrial connector assembly and quality control inspection.
