ST4050 Pneumatic Crimp Tool Kit — For DT/Deutsch Series 12–22 AWG Contacts
Pneumatic crimp system designed for professional crimping of Deutsch DT, DTM, DTP and similar round contacts.
Provides stable crimping force and high repeatability; ideal for automotive harness production, off-road vehicles,
construction machinery, marine systems and industrial wiring assembly.
Wire & Crimp Specification
- Wire Range: 12–22 AWG (0.32–3.33 mm²)
- Crimp Style: 4-Indent Closed-Barrel Crimp
- Crimper Model: YJQ-W2DTQ Pneumatic Crimp Tool
- Positioner: Fixed / Adjustable Sleeve Positioner (not removable)
Compatible Connector Series
DT Series, DTM Series, DTP Series, DTHD Series, HD10 Series, HDP20 Series, HD30 Series, AT Series, ATS Series, ATP Series, AHD Series
Tool Advantages
- Equivalent to YJQ-W2DT / HDT-48-00: Supports the same contact size ranges but with air-powered activation.
- Stable Pneumatic Operation: Runs on compressed air; no electrical power required.
- High Efficiency: Reduced operator fatigue during continuous production use.
- 8 Selector Positions: Selector dial allows quick adjustment for different contact sizes.
- Fixed Positioner: Precisely aligns terminals into the crimp cavity for consistent results.

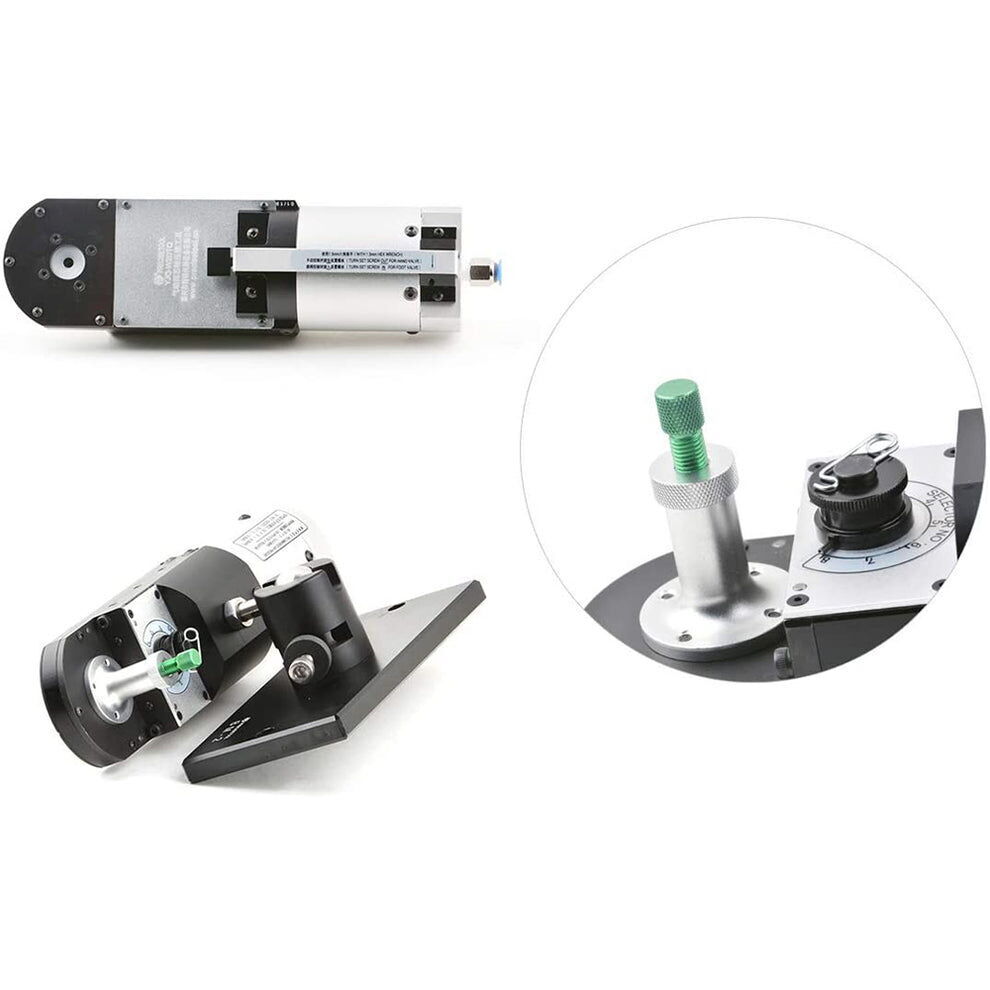

Base Mount Adjustment

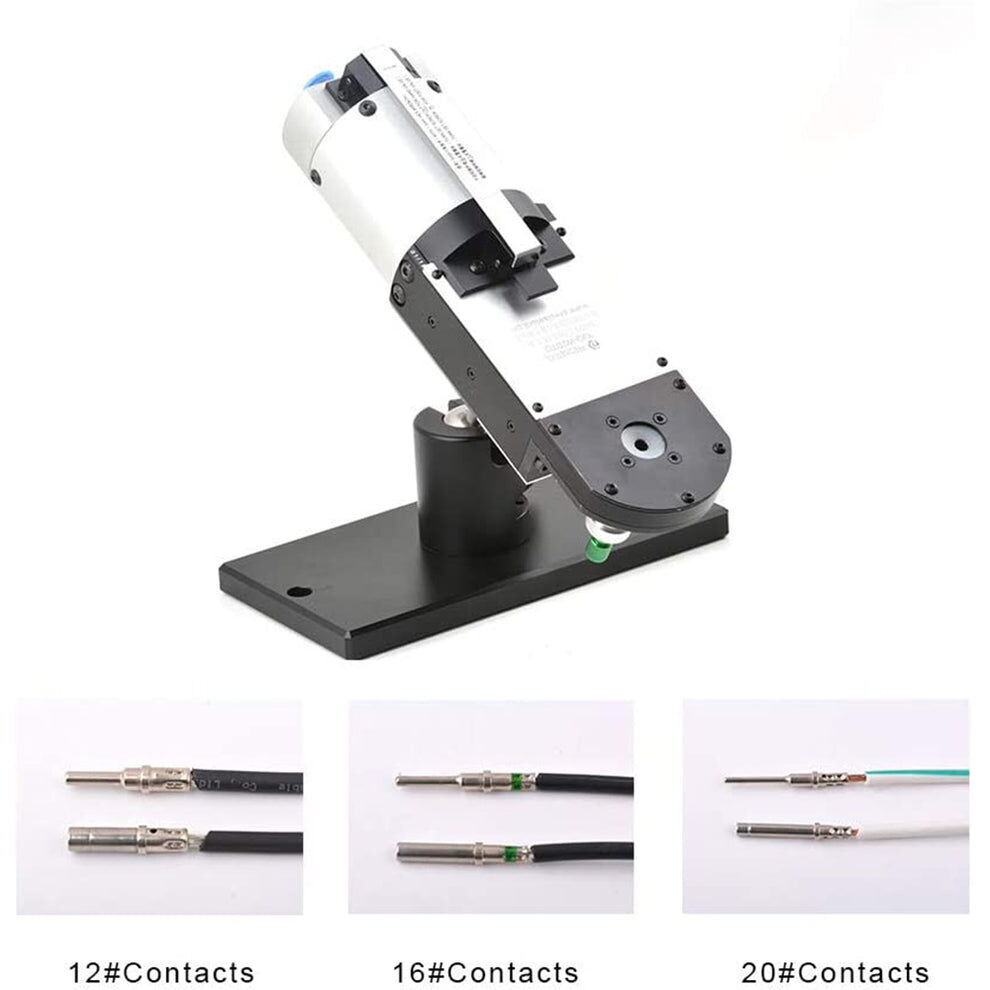

The BM-2 bench mount allows the crimper to be fixed for hands-free operation. The adjustment screw can lock or release
the crimp tool body depending on workspace requirements.

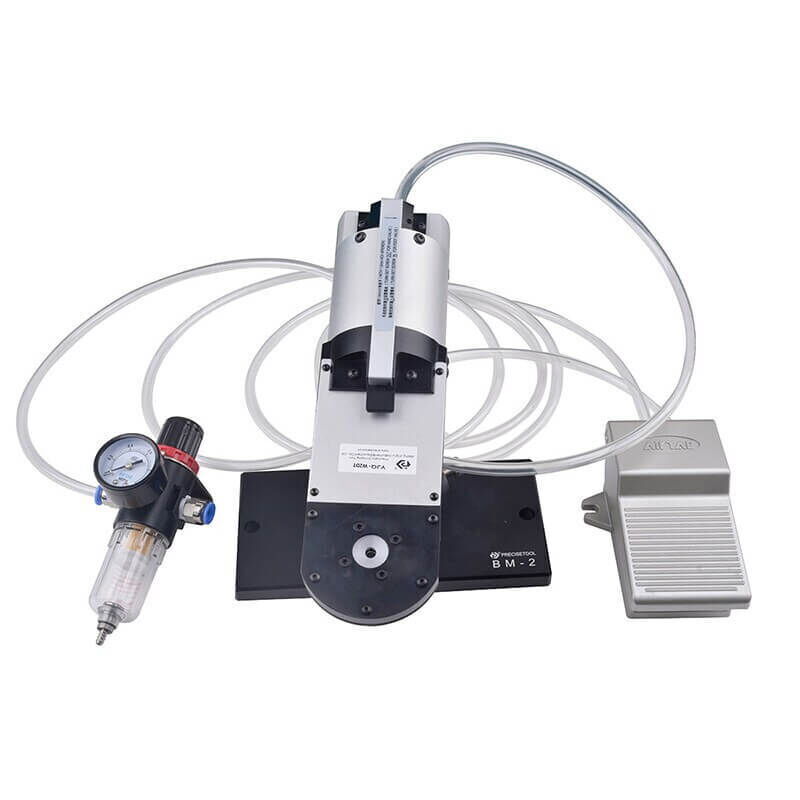

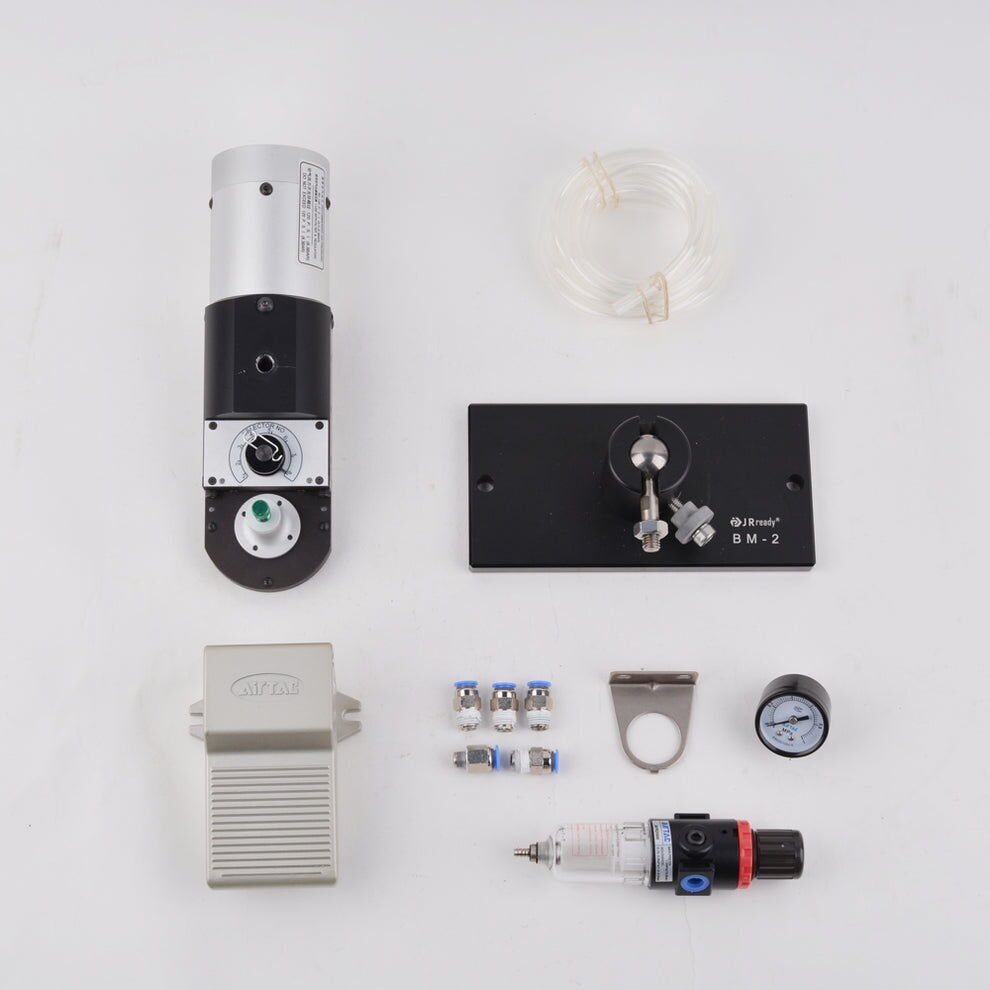

Package Includes
- 1 × YJQ-W2DTQ Pneumatic Crimp Tool
- 1 × BM-2 Adjustable Bench Mount
- 1 × F2 Air Control System (foot-pedal + regulator + hoses)
