Qualification
|
Mil-Spec/AS Qualified
|
|
Crimp Tool Type
|
Indent Tools
|
|
Power Type
|
Pneumatic
|
WA 23
Qualified to AS22520/23, DMC’s® heavy-duty pneumatic indent crimp tool, the WA23® functions with the push of a button for operator ease. This crimp tool accommodates large size contacts 8 through 0000 (AWG) and operates on standard 90–125 psi (5.4–8.16 BAR) shop air sources.
It is engineered with the operator’s safety in mind and features a full-cycle control system. This tool is portable and needs no extra booster for large size contacts.
The standard die assembly and positioner are easily interchangeable with no special tool required. Custom dies and positioners may be designed to specific requirements.
DMC® also offers a Hydraulic version HD23 and the battery-powered version HDE23C.
**Comparable to Pico 400 Crimp Tool.

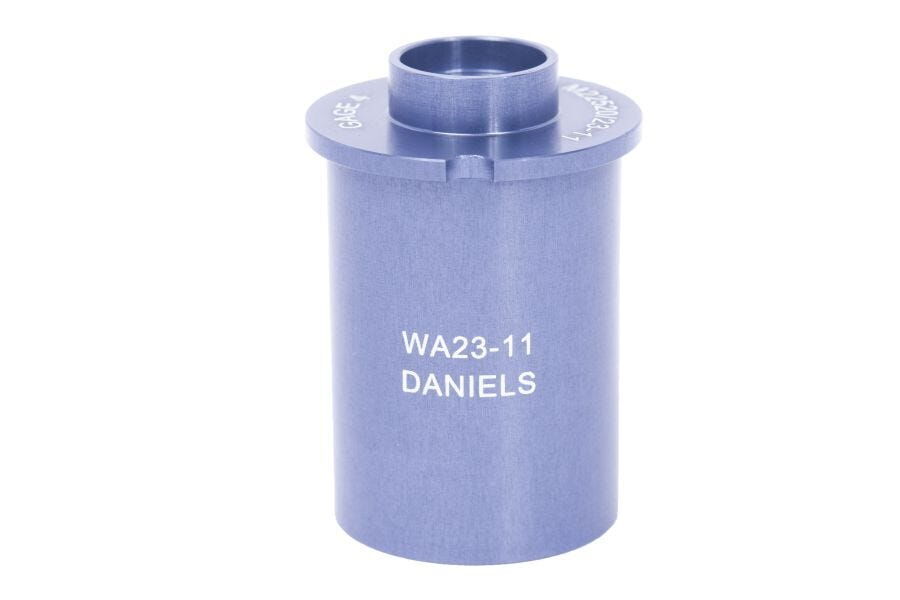

23 Series Dies & Pico Cross-Reference
Contacts M39029/29-4-4, M39029/29-215, M39029/30-4-4, M39029/30-221,M39029/44-292, M39029/45-299, MS90453-4-4, MS90454-4-4
