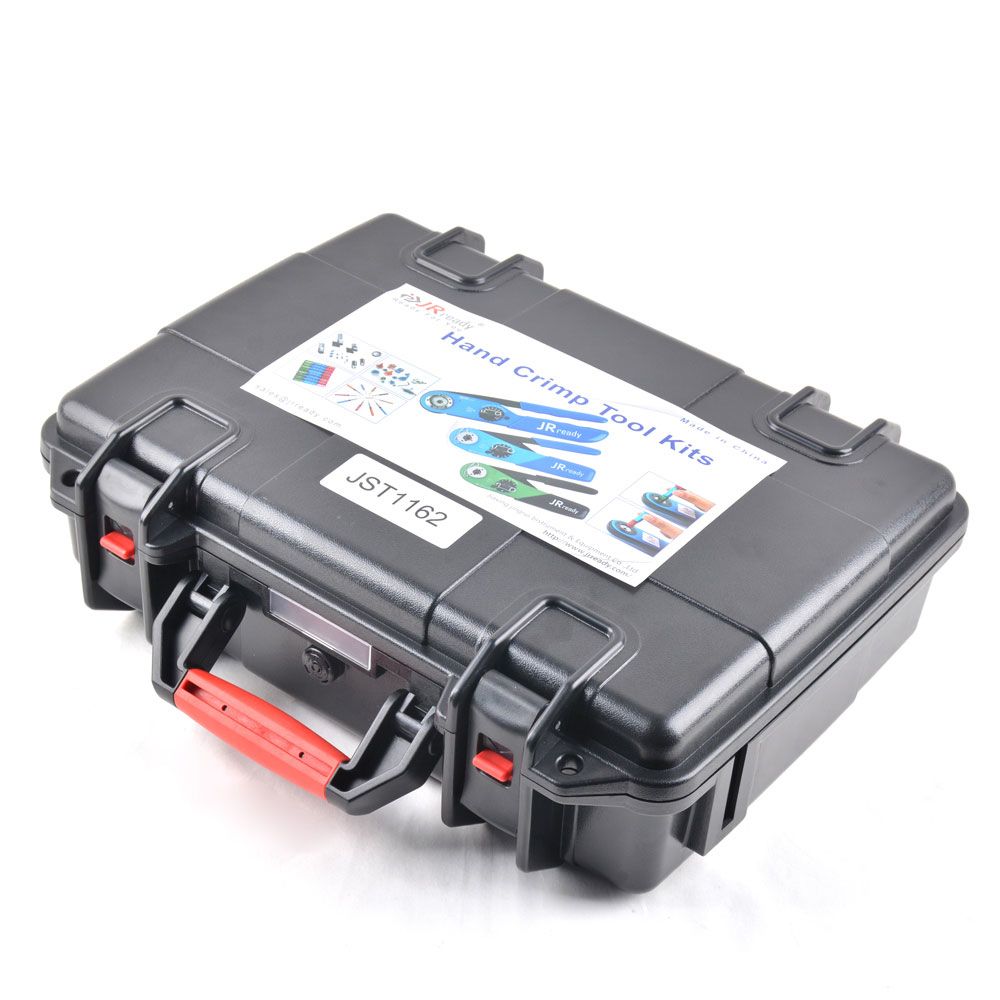

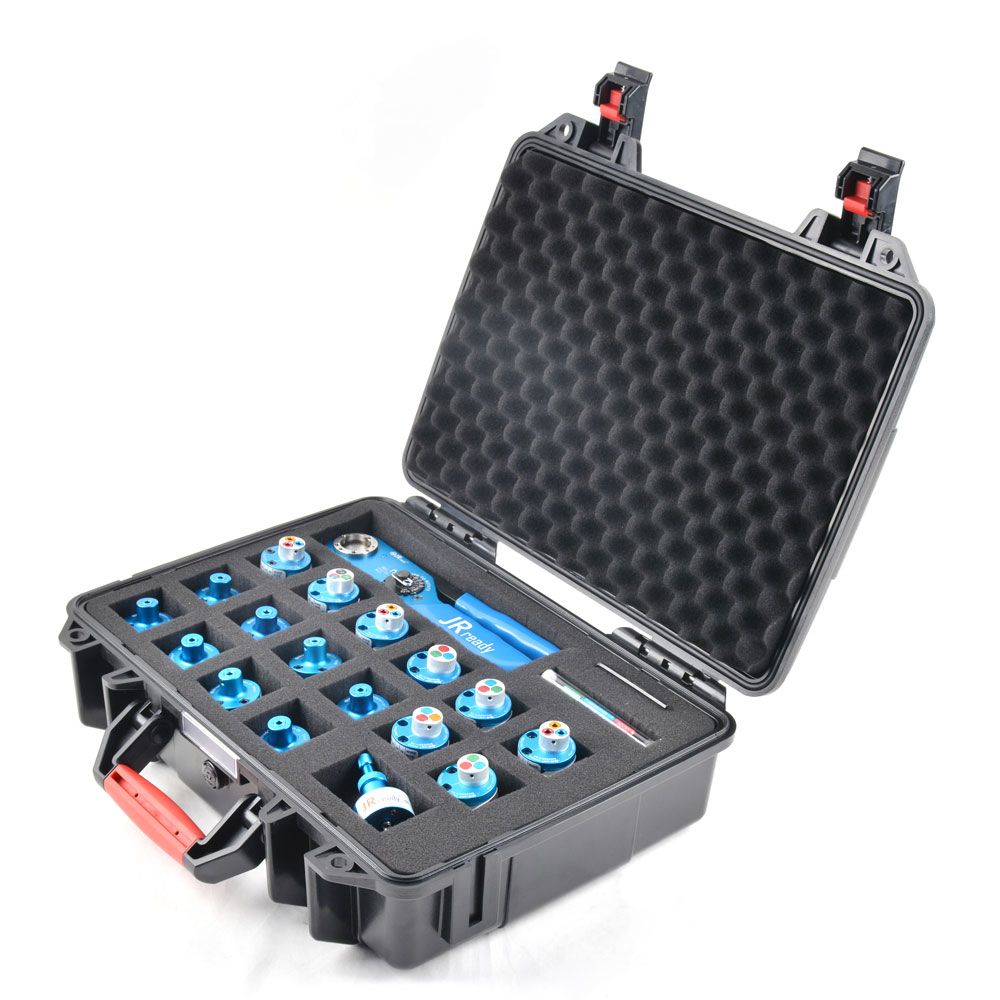

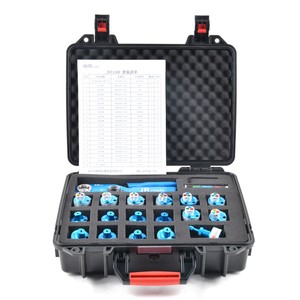

JRready JST1162-ASF1 Crimp Tool Full Kit: NEW-ASF1 (M22520/1-01) Crimp Tool+17 Positioners+G125 Gage For Electrical Connectors Wiring System

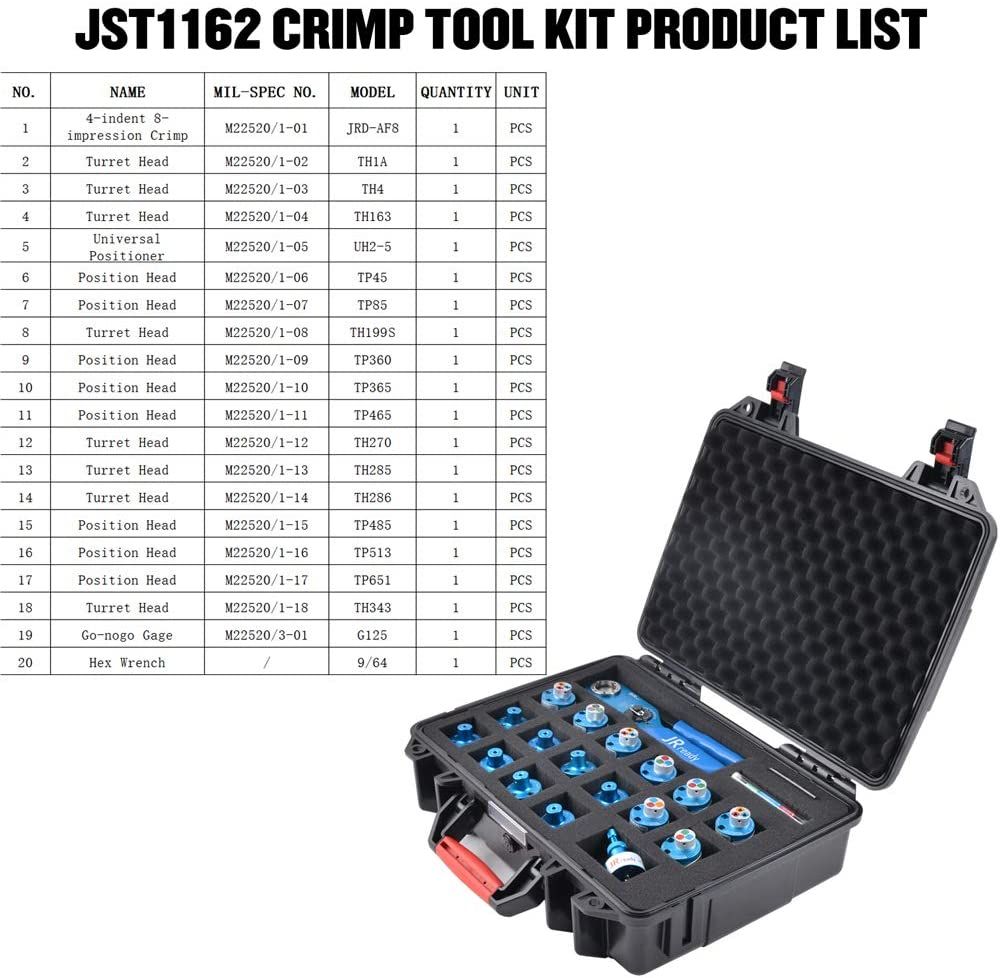

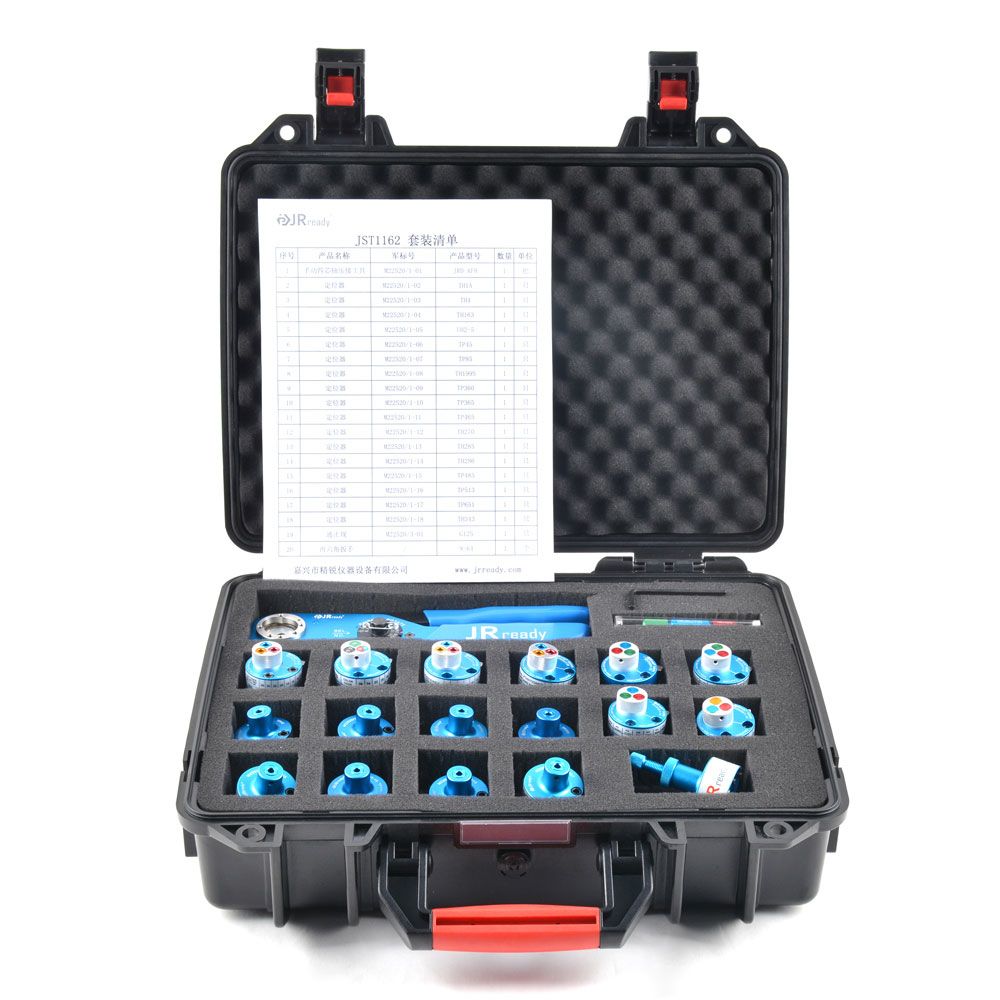

| PACKAING LIST |
| NO. |
MIL PART NUMBER |
JRREADY PART NUMBER |
| 1 |
M22520/1-01 |
NEW-ASF1 |
| 2 |
M22520/1-02 |
PH102 |
| 3 |
M22520/1-03 |
PH103 |
| 4 |
M22520/1-04 |
PH104 |
| 5 |
M22520/1-05 |
PU105 |
| 6 |
M22520/1-06 |
PT106 |
| 7 |
M22520/1-07 |
PT107 |
| 8 |
M22520/1-08 |
PH108S |
| 9 |
M22520/1-09 |
PT109 |
| 10 |
M22520/1-10 |
PT110 |
| 11 |
M22520/1-11 |
PT111 |
| 12 |
M22520/1-12 |
PH112 |
| 13 |
M22520/1-13 |
PH113 |
| 14 |
M22520/1-14 |
PH114 |
| 15 |
M22520/1-15 |
PT115 |
| 16 |
M22520/1-16 |
PT116 |
| 17 |
M22520/1-17 |
PT117 |
| 18 |
M22520/1-18 |
PH118 |
| 19 |
M22520/3-1 |
G125 |

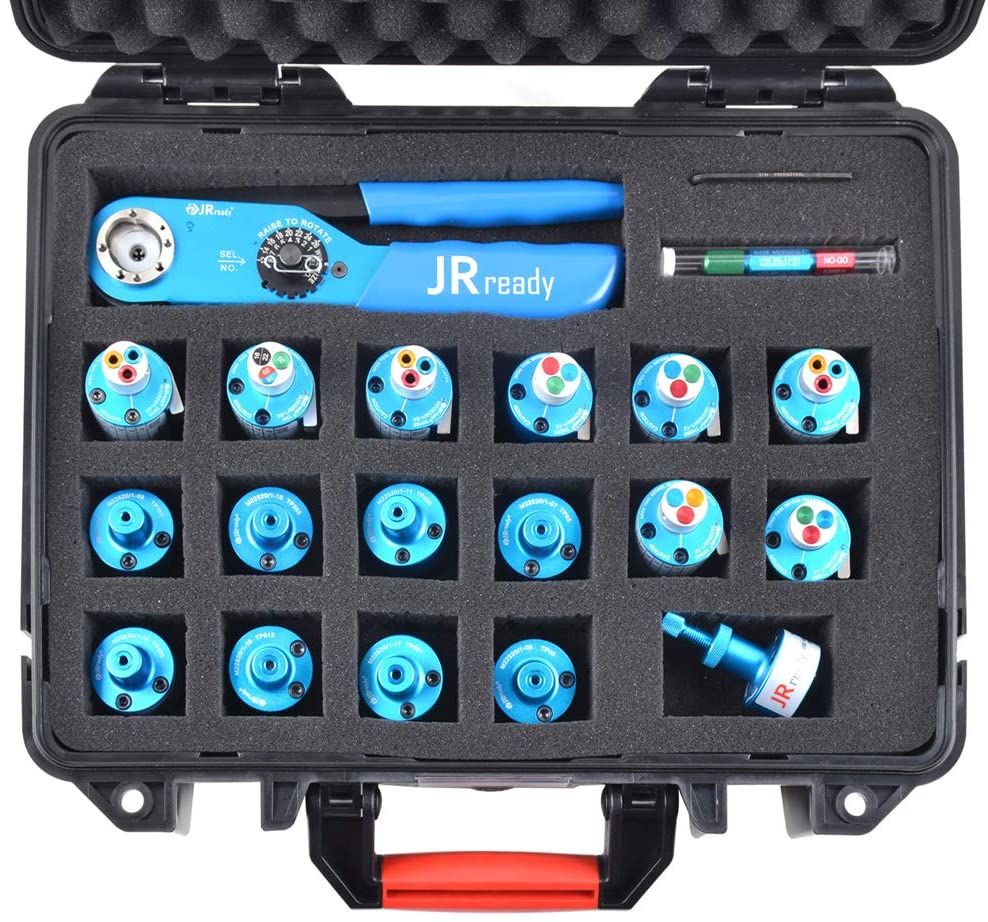

NEW-ASF1 Crimp Tool
[NEW DESIGN NEW APPEARANCE]
Personalized & Unique Colorful Camouflage Appearance with firm construction which makes work more interesting
[4-WAY 8-IMPRESSION CRIMPING]
Gives a Mil-Standard 8 impression crimp, which assures maximum tensile strength with almost every closed barrel contact
[CRIMP WIRE RANGE]
12-26 AWG (0.128-3.33mm²)
Has virtually limitless application within the specified wire range of 12 through 26 AWG
[PROFESSIONAL CRIMPING TOOL]
Designed according to MIL-C-22520/1-01;
The cycle controlled precision ratchet assures consistently accurate crimps every time
Positive crimp depth is controlled by an 8 position selector knob conveniently located on the tool frame
[APPLICATION]
NEW-ASF1: Suitable for crimping round contacts of MIL standard, Harting, Wain, TE connectors
