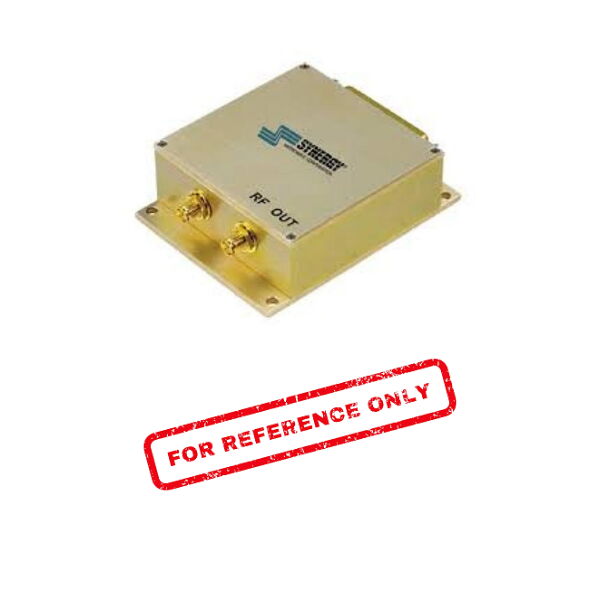

| SPECIFICATIONS (Rev. A 11/30/16) |
| Nominal Frequency Fo |
10.000 MHz |
| Frequency Stability |
| Within operating range |
± 7 × 10–6 |
| vs. supply voltage changes Vcc ± 10% |
± 5 × 10–8 |
| vs. load changes 50 Ohm ± 10% |
± 5 × 10–8 |
| Aging (after 30 days of continuous operation) |
| Per day |
≤ ± 5 × 10–10 |
| Per Year |
≤ ± 5 × 10–8 |
| 10 Years |
≤ ± 3 × 10–7 |
| Frequency Tuning Range |
| Tuning Voltage Range Vc |
0.5 to 5 V |
| Supply Voltage Vcc |
+12.0 V ± 10% |
| Supply Current Icc |
| Steady State @ +25 °C |
≤ 200 mA |
| Steady State @ +40 °C |
≤ 250 mA |
| During Warm-up |
≤ 600 mA |
| Warm Up Time |
| To dF/Fo ≤ ± 5 × 10–8 referred to Fo after 1 hour |
≤ 10 min. |
| Output signal type |
| Sine wave |
|
| Initial output level |
+3 dBm |
| Output load impedance |
50 Ohms |
| Harmonics |
–30 dBc |
| Typical Phase Noise |
| 10 Hz |
–130 dBc/Hz |
| 100 Hz |
–150 dBc/Hz |
| 1 kHz |
–160 dBc/Hz |
| 10 kHz |
–165 dBc/Hz |
| 100 kHz |
–170 dBc/Hz |
| Temperature Ranges |
| Operating |
–40 °C ~ +85 °C |
| Storage |
–40 °C ~ +85 °C |
