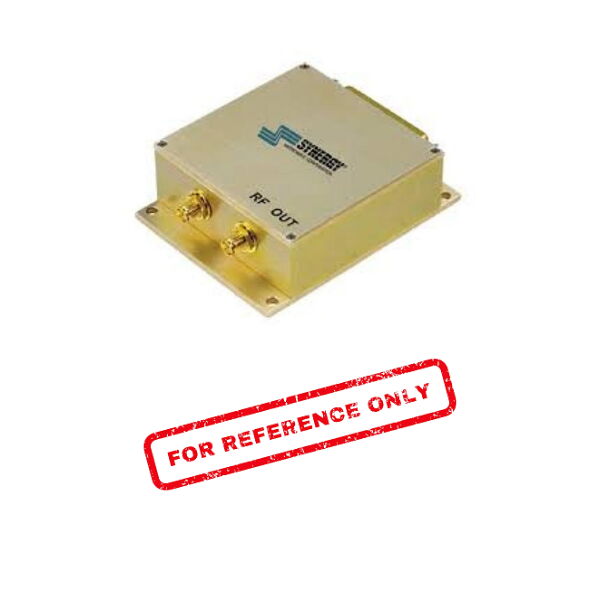

| SPECIFICATIONS (Rev. B 03/23/19) |
| Nominal Frequency Fo |
10.000 MHz |
| Initial Frequency Tolerance |
| TA = +25 °C, after power on for 30 min. |
± 0.1 × 10–6 |
| Frequency Stability |
| Within operating range |
± 20 × 10–6 |
| vs. supply voltage changes Vcc ± 5% |
± 1 × 10–6 |
| vs. load changes 50 Ohm ± 5% |
± 1 × 10–6 |
| Aging (after 30 days of continuous operation) |
| Per day |
≤ ± 0.5 × 10–8 |
| Per Year |
≤ ± 5 × 10–7 |
| 10 Years |
≤ ± 3 × 10–6 |
| Frequency Tuning Range |
| Tuning Voltage Range Vc |
0.5 to 9.5 V |
| Reference Voltage Output Vref |
+9.5 V ± 0.5 V |
| Supply Voltage Vcc |
+12.0 V ± 5% |
| Supply Current Icc |
| Steady State @ +25 °C |
≤ 180 mA |
| During Warm-up (Typ. / Max.) |
320 / 450 mA |
| Warm Up Time |
| To dF/Fo ≤ ± 100 × 10–8 referred to Fo, after 1 hour |
≤ 3 min. |
| Output signal type |
| Signal |
Sine wave |
| Initial output level |
±8 dBm |
| Harmonics |
< –30 dBc |
| Spurious (10 Hz to 1 MHz from carrier) |
< –80 dBc |
| Allan Variance (short term stability @ tau = 1 sec.) |
2×10–10 |
| Output load impedance |
50 Ohms |
| Typical Phase Noise |
| 1 Hz |
–100 dBc/Hz |
| 10 Hz |
–130 dBc/Hz |
| 100 Hz |
–150 dBc/Hz |
| 1 kHz |
–160 dBc/Hz |
| 10 kHz |
–165 dBc/Hz |
| 100 kHz |
–175 dBc/Hz |
| Temperature Ranges |
| Operating |
–40 °C ~ +85 °C |
| Storage |
–50 °C ~ +95 °C |
