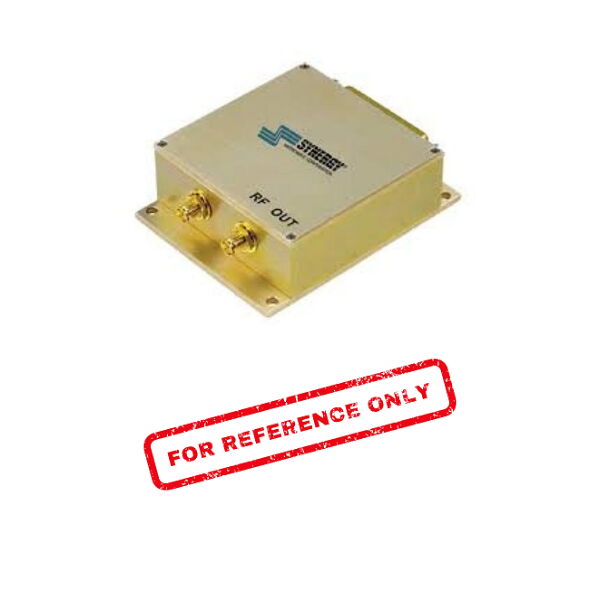

| SPECIFICATIONS (Rev. A 12/04/19) |
| Nominal Frequency Fn |
10.000 MHz |
| Frequency Stability |
| Within operating range |
± ≤ 5 x 10-8 |
| vs. supply voltage changes Vs ± 5% |
± ≤ 5 x 10-9 |
| vs. load changes 50 Ohm ± 5% |
± ≤ 5 x 10-9 |
| Aging (after 30 days of continuous operation) |
| Per day |
± ≤ 5 x 10-10 |
| Per month |
± ≤ 1 x 10-8 |
| 15 Years |
± ≤ 5 x 10-7 |
| Frequency Tuning Range |
| Tuning Voltage Range Vc |
0 to 5 V |
| Reference Voltage Output Vref |
+5 V ± 5% |
| Supply Voltage Vs |
+12.0 V ± 10% |
| Supply Current Is |
| Steady State @ +25 °C |
≤ 200 mA |
| During Warm-up |
≤ 350 mA |
| Warm-Up Time |
| To dF/Fn ≤ ± 5 x 10-8 referred to Fn after 1 hour ≤ 10 min |
| Output signal type |
| Output signal |
Sine wave |
| Initial output level |
+7.5 dBm ± 2.5 dB |
| Output load impedance |
50 Ohm |
| Harmonics |
≤ -20 dBc |
| Spurious (100 Hz to 1 MHz from carrier) |
≤ -90 dBc |
| Typical Phase Noise |
| Offset |
dBc/Hz |
| 1 Hz |
-95 |
| 10 Hz |
-130 |
| 100 Hz |
-150 |
| 1 kHz |
-160 |
| 10 kHz |
-165 |
| 100 kHz |
-170 |
|
| Temperature Ranges |
| Operating |
-20 °C ~ +70 °C |
| Storage |
-40 °C ~ +85 °C |
