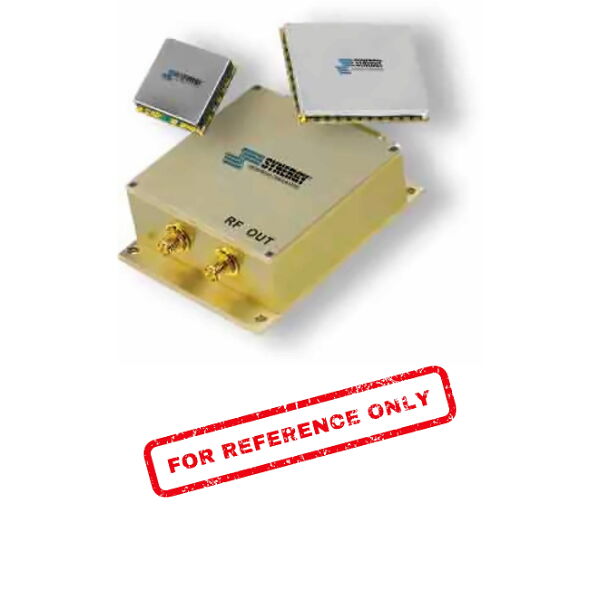

| SPECIFICATIONS |
| Frequency |
3000 – 6000 MHz |
| Step Size |
1000 kHz |
| Reference Input Frequency |
10 MHz |
| Reference Input Voltage |
1 V p-p to 3.3 V p-p |
| Bias Voltage |
| Digital |
+5 V / 15 mA |
| VCO |
+5 V / 50 mA |
| Tune |
+20 V / 10 mA |
| Lock Detect Indicator |
CMOS 3.3 V |
| Output Power |
-3 dBm (Min.) |
| Spurious Suppression |
90 dBc (Typ.) |
| Harmonic Suppression |
20 dBc (Typ.) |
| Setting Time |
3 mSec (Typ.) |
| Output Impedance |
50 Ohms (Nom.) |
| Typical Phase Noise |
| @ 1 kHz |
-78 dBc/Hz |
| @ 10 kHz |
-80 dBc/Hz |
| @ 100 kHz |
-100 dBc/Hz |
| Operating Temperature Range |
-40 to +85 °C |
| Programming |
See Application Note: AN7100 |
