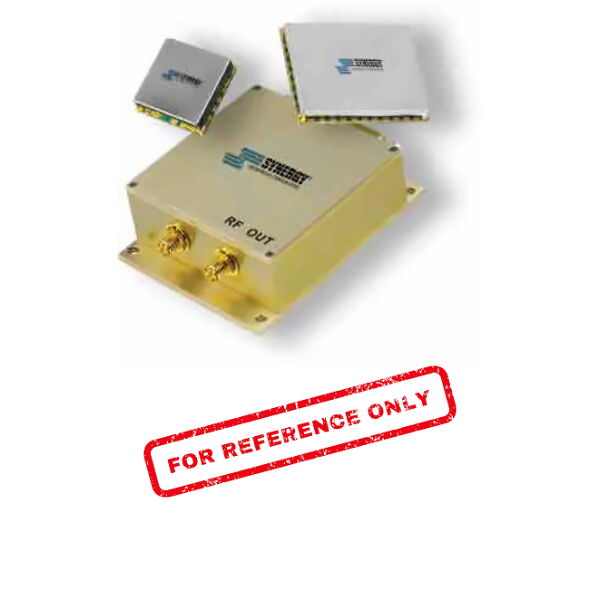

| SPECIFICATIONS (Rev. B 03/28/11) |
| Frequency |
3710 MHz |
| Reference Input Frequency |
10 MHz |
| Reference Input Voltage |
1.0 V p-p to 3.3 V p-p |
| Bias Voltage |
| Digital |
+5 V / 65 mA |
| VCO |
+8 V / 35 mA |
| VTune |
+8 V / 10 mA |
| Output Power |
+4.5 dBm ±2dB |
| Spurious & Ref. Sideband |
90 dBc (Typ.) |
| Harmonic Suppression |
20 dBc (Typ.) |
| Setting Time |
90 mSec (Max.) |
| Output Impedance |
50 Ohms (Nom.) |
| Lock Detect Indicator |
CMOS |
| Typical Phase Noise |
| @ 1 kHz |
-90 dBc/Hz |
| @ 10 kHz |
-102 dBc/Hz |
| @ 100 kHz |
-129 dBc/Hz |
| Operating Temperature Range |
-40 to +85 °C |
| Absolute Maximum Ratings |
| Storage Temp. Range |
-55 to +125 °C |
| Bias Voltage (Digital) |
+5.25 V |
| Bias Voltage (Tune) |
+12.0 V |
| Bias Voltage (VCO) |
+8.5 V |
| DC Voltage Applied to RF Out |
±25 V |
