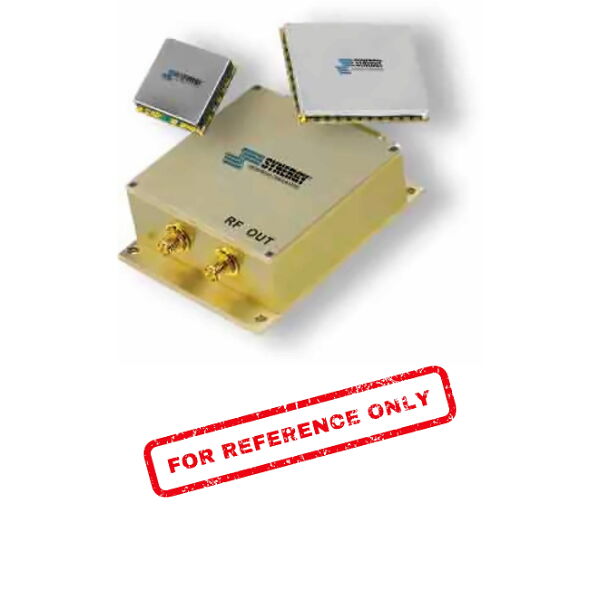

Name: FCPH310410-10
Brand: SYNERGY
SKU: 0006273
Price: 360 USD
Availability: OutOfStock

FCPH310410-10

$ 300,00 + KDV

SPECIFICATIONS (Rev. D 01/02/12)
Frequency	3100 – 4100 MHz
Reference Input Frequency	10 MHz
Reference Input Voltage	1.0 V p-p to 3.3 V p-p
Bias Voltage
Digital	+5 V / 15 mA
Tune	+12 V / 10 mA
VCO	+5 V / 65 mA
Lock Detect Indicator	CMOS 3.3 V
Output Power	+5 dBm (Min.)
Spurious Suppression	75 dBc (Typ.)
Harmonic Suppression	20 dBc (Typ.)
Power Up Time	90 mSec (Typ.)
Output Impedance	50 Ohms (Nom.)
Typical Phase Noise
@ 10 kHz	-92 dBc/Hz
@ 100 kHz	-98 dBc/Hz
Operating Temperature Range	-40 to +85 °C
