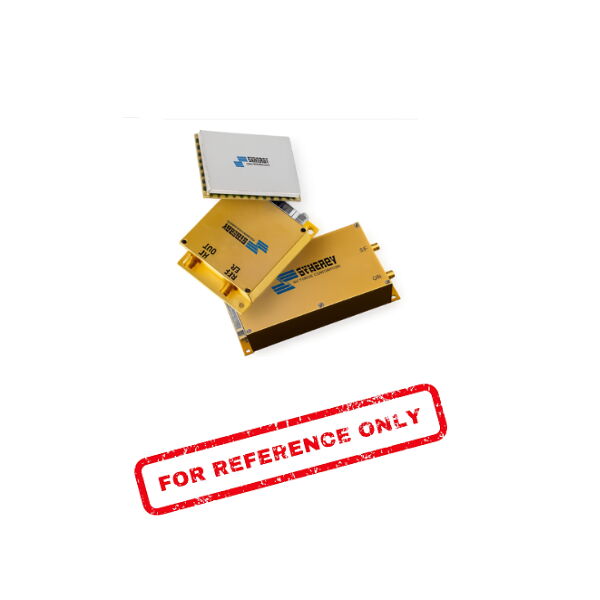

Name: FSA1000-100
Brand: SYNERGY
SKU: 0005919
Price: 360 USD
Availability: OutOfStock

FSA1000-100

$ 300,00 + KDV

SPECIFICATIONS
Frequency	1000 MHz
Reference Input Frequency	100 MHz¹
Reference Input Voltage	1.0 to 3.3 V p-p
Bias Voltage	1 (RF): +5 VDC @ 50 mA (Max.) 2 (Analog): +3.3 VDC @ 10 mA (Max.) 3 (Ref, 1 GHz): +3.3 VDC @ 20 mA (Max.) 4 (Reference): +12 VDC @ 150 mA (Max.) 5 (VCO): +12 VDC @ 20 mA (Max.) 6 (PLL): +5 VDC @ 10 mA (Max.) 7 (PLL): +3.3 VDC @ 10 mA (Max.) 8 (VCO): +5 VDC @ 50 mA (Max.)
Output Power	+5 dBm (Min.)
Spurious Suppression	80 dB (Typ.)
Harmonic Suppression	15 dB (Typ.)
Output Impedance	50 Ohms (Nom.)
Lock Detect Indicator	CMOS 3.3 V
¹ External 100 MHz reference sources should have phase noise better than –138 dBc/Hz @ 50 Hz offset to achieve published specifications.
