Electrical Ratings (Catalog Symbol and Amperes)
|
|
|
Catalognumbers
|
(amps)
|
|
|
|
|
ANN-10
|
ANN-90
|
ANN-225
|
ANN-400
|
|
|
ANN-35
|
ANN-100
|
ANN-250
|
ANN-500
|
|
|
ANN-40
|
ANN-125
|
ANN-275
|
ANN-600
|
|
|
ANN-50
|
ANN-150
|
ANN-300
|
ANN-700
|
|
|
ANN-60
|
ANN-175
|
ANN-325
|
ANN-800
|
|
|
ANN-80
|
ANN-200
|
ANN-350
|
—
|
|
|
|
Catalog Symbol:
ANN
Very Fast-Acting
Ampere Rating: ** to 800A Voltage Rating: 125*** (or less) 80Vdc (or less)
Interrupting Rating: 2,500A ac, 2,7*** dc
Agency Information: UL Recognized, 35-400A, 500A dc only, ***** JFHR2, File E56412
Electrical Ratings (Catalog Symbol and Amperes)
|
|
|
Catalognumbers
|
(amps)
|
|
|
|
|
ANN-10
|
ANN-90
|
ANN-225
|
ANN-400
|
|
|
ANN-35
|
ANN-100
|
ANN-250
|
ANN-500
|
|
|
ANN-40
|
ANN-125
|
ANN-275
|
ANN-600
|
|
|
ANN-50
|
ANN-150
|
ANN-300
|
ANN-700
|
|
|
ANN-60
|
ANN-175
|
ANN-325
|
ANN-800
|
|
|
ANN-80
|
ANN-200
|
ANN-350
|
—
|
|
|
|

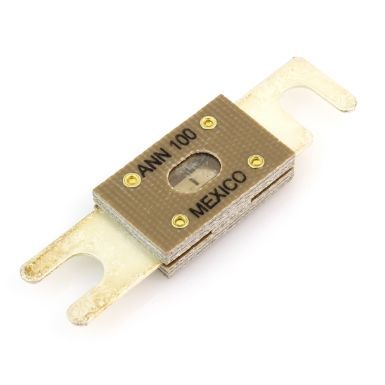

Catalog Symbol:
ANN
Very Fast-Acting
Ampere Rating: 10 to 800A Voltage Rating: 125Vac (or less) 80Vdc (or less)
Interrupting Rating: 2,500A ac, 2,700A dc
Agency Information: UL Recognized, 35-400A, 500A dc only, Guide JFHR2, File E56412
General Information:
- Very fast-acting (high speed of responses to short-circuit currents).
- An open link element is visible through a mica window.
- Stud mounts in Buss fuseblock 4164.
- CSA component acceptance, 35-400A, 500A dc only, Class 1422-30, **** 53787.
Electrical Ratings (Catalog Symbol and Amperes)
|
|
|
Catalognumbers
|
(amps)
|
|
|
|
|
ANN-10
|
ANN-90
|
ANN-225
|
ANN-400
|
|
|
ANN-35
|
ANN-100
|
ANN-250
|
ANN-500
|
|
|
ANN-40
|
ANN-125
|
ANN-275
|
ANN-600
|
|
|
ANN-50
|
ANN-150
|
ANN-300
|
ANN-700
|
|
|
ANN-60
|
ANN-175
|
ANN-325
|
ANN-800
|
|
|
ANN-80
|
ANN-200
|
ANN-350
|
—
|
|
|
|
