Stok Kodu :0005121

2TL1-1A // MS24659-21A

$ 95,00 + KDV
$ 95,00 + KDV
Stok Sayısı :
41
Model# :
HONEY
Ürün Barkodu :
KDV Hariç :
$ 95,00 + KDV
Fiyatlarımıza KDV dahil değildir
Lütfen güncel stok bilgisi ve fiyat için mail atınız.

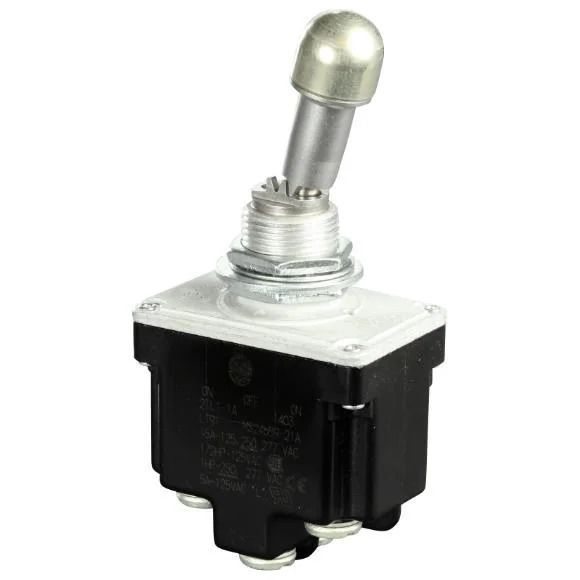

2TL1-1A, MS24659-21A Honeywell MICRO SWITCH TL Series Toggle Switch, DPDT - 2 pole, 3 position (ON-OFF-ON), Screw terminal, Locking Lever - (A) Locked in three positions, Military Part Number MS24659-21A.

MICRO SWITCH™ TL SeriesToggle Switches

Honeywell MICRO SWITCH™ TL Series toggle switches are military qualified to MIL-DTL-3950, specifications forsealed toggle switches. Quality construction features include a bonded seal between the toggle lever and bushing, andbetween the cover and case.

The robust design of the TL Series toggle is well-suited for many military, aerospace and other demanding applicationswhere reliability is essential. These applications include environments where the panels are subjected to mechanicalshock, vibration, and temperature extremes as well as environments with dust, splashing or hose-directed water.

TL Series toggle switches offer a variety of circuitry and pole options to easily integrate into a number of applications.A long history in military and aerospace applications has shown the TL Series toggle provides reliable performance withlong operating life under the toughest conditions.



MICRO SWITCH™ Military-Grade Toggle Switches



Table 1. Specifications

Characteristic                                                                                                                Parameter

Description

military-grade toggle switch

Sealing

qualified to MIL-DTL-3950

Operating temperature

-65 °C to 71 °C [-85 °F to 160 °F]

Actuators

standard, locking, special design, tab

Action

2- or 3- position; momentary and maintained

Mounting

Bushing 15/32 in (0.47 in) Ø

Circuitry

SPST, SPDT, DPST, DPDT, 4PST, 4PDT

Terminations

IWTS, solder, screw, quick-connect, leadwire

Contacts

Silver alloy or gold-plated

Amp rating

Up to 20 A, ac and dc capability

Approvals

UL, CSA, CE

Measurement

26,7 mm H x 33,5 mm W x 22,6 mm D [1.05 in H x 1.32 in W x 0.89 in D]





Table 2. UL and CSA Electrical Ratings

Rating code                                                                                                              Electrical rating

L192

10 amps, 125, 250, 277 Vac; ¼ Hp, 125 Vac; ½ Hp, 250, 277 Vac; 3 amps, 125 Vac “L”

L191

15 amps, 125, 250, 277 Vac; ½ Hp, 125 Vac; 1 Hp, 250, 277 Vac; 5 amps, 125 Vac “L”





Table 3. Electrical Ratings (in amperes)



Electrical rating code



28 Vdc



115 Vdc



250 Vdc

115 Vac, 60 Hz & 400 Hz

Max.



230 Vac



Ind.

Res.

Lamp

Res.

Res.

Ind.

Res.

Lamp

Res.

1

15

20

5

0.75

0.5

10

15

3

6

2

10

15

4

0.75



 Honeywell MicroSwich TL
