| Description |

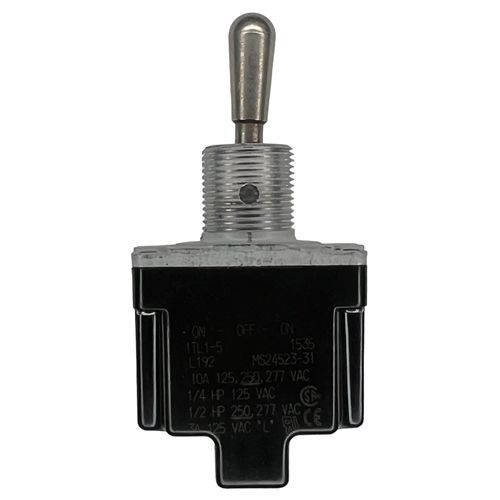

Military-grade sealed toggle switch |
| Sealing |
Qualified to MIL-DTL-3950 |
| Operating Temperature |
-65 °C to 71 °C (-85 °F to 160 °F) |
| Actuators |
Standard, locking, special design, tab |
| Action |
2- or 3-position; momentary and maintained |
| Mounting |
Bushing 15/32 in (0.47 in) Ø |
| Circuitry |
SPST, SPDT, DPST, DPDT, 4PST, 4PDT |
| Terminations |
IWTS, solder, screw, quick-connect, leadwire |
| Contacts |
Silver alloy or gold-plated |
| Amp Rating |
Up to 20 A (AC & DC capability) |
| Approvals |
UL, CSA, CE |
| Dimensions |
26.7 mm H × 33.5 mm W × 22.6 mm D (1.05 in × 1.32 in × 0.89 in) |
