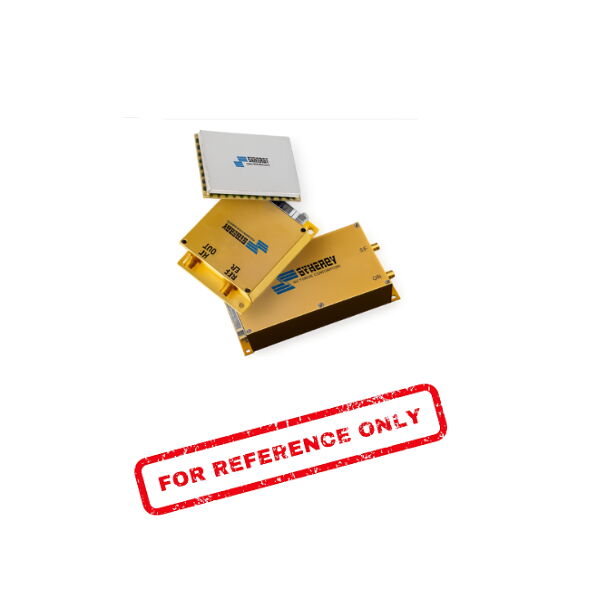

| SPECIFICATIONS |
| Frequency |
120 MHz |
| Reference Input Frequency |
10 MHz1 |
| Reference Input Voltage |
1.0 to 3.3 V p-p |
| Bias Voltage (Vcc) |
+5 Vdc @ 85 mA (max.) |
| Output Power |
7 dBm (Min.) |
| Modulation Bandwidth |
30 Hz (Typ.) |
| Harmonic Suppression |
28 dB (Typ.) |
| Output Impedance |
50 Ohms (Nom.) |
| Lock Detect Indicator |
LVCMOS 3.3 V
(logic: 1 = lock, 0 = unlock) |
| Typical Phase Noise |
@ 100 Hz: –110 dBc/Hz
@ 1 kHz: –140 dBc/Hz
@ 10 kHz: –156 dBc/Hz
@ 100 kHz: –165 dBc/Hz |
| Operating Temperature Range |
–40 to +85 °C |
| Absolute Maximum Ratings |
| Storage Temp. Range |
–40 to +85 °C |
| Bias Voltage (Vcc) |
+5.25 V |
1 External 10 MHz reference sources should have phase noise better than –138 dBc/Hz @ 50 Hz offset to achieve published specifications.
