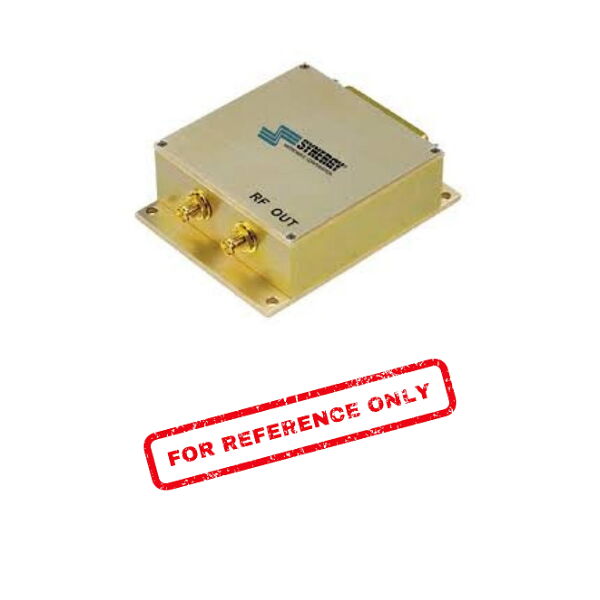

| SPECIFICATIONS |
| Nominal Frequency FN |
100.000 MHz |
| Initial Frequency Tolerance |
| TR = +25 °C, after power on for 30 min. |
≤ ± 2 × 10-7 |
| Frequency Stability |
| Within operating range |
≤ ± 5 × 10-8 |
| vs. supply voltage changes VS ± 5% |
≤ ± 1 × 10-8 |
| vs. load changes 50 Ohm ± 5% |
≤ ± 5 × 10-8 |
| Aging (after 30 days of continuous operation) |
| Per day |
≤ ± 2 × 10-9 |
| Per Year |
≤ ± 1 × 10-7 |
| 15 Years |
≤ ± 7 × 10-7 |
| Frequency Tuning Range |
± 1.5 ppm |
| Tuning Voltage Range VC |
0 to 10 V |
| Reference Voltage Output VREF |
+10 V ± 5% |
| Supply Voltage VS |
+12.0 V ± 5% |
| Supply Current IS |
| Steady State @ +25 °C |
≤ 150 mA |
| During Warm-up |
≤ 400 mA |
| Warm-Up Time |
To dF/FN ≤ ± 1 × 10-7 referred to FN after 1 hour: ≤ 5 min. |
| Output signal type |
Sine Wave |
| Initial output level |
≥ 7 dBm |
| Output load impedance |
50 Ohm ± 10% |
| Harmonics |
≤ -30 dBc |
| Spurious (100 Hz to 5 MHz) |
≤ -100 dBc |
| Typical Phase Noise |
| 10 Hz |
-100 dBc/Hz |
| 100 Hz |
-130 dBc/Hz |
| 1 kHz |
-155 dBc/Hz |
| 10 kHz |
-165 dBc/Hz |
| 100 kHz |
-170 dBc/Hz |
| Temperature Ranges |
| Operating |
-40 °C ... +70 °C |
| Storage |
-40 °C ... +85 °C |
