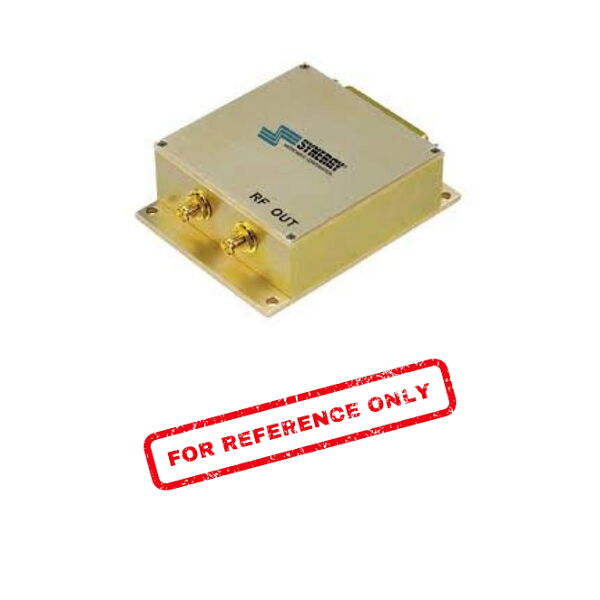

| Nominal Frequency Fn |
10.000 MHz |
| Frequency Stability |
| Within operating range |
± 5 × 10-8 |
| vs. supply voltage changes Vcc ± 5% |
± 5 × 10-8 |
| vs. load changes 50 Ohm ± 5% |
± 5 × 10-8 |
| Aging (after 30 days of continuous operation) |
| Per day |
≤ ± 5 × 10-10 |
| Per month |
≤ ± 1 × 10-8 |
| 15 Years |
≤ ± 5 × 10-7 |
| Frequency Tuning Range |
| Frequency Tuning Range |
± 0.5 ppm to ±1.5 ppm |
| Tuning Voltage Range Vc |
0 to 5 V |
| Reference Voltage Output Vref |
+2.0 V ± 5% |
| Supply Voltage Vcc |
+12.0 V ± 5% |
| Supply Current Icc |
| Steady State @ +25 °C |
≤ 200 mA |
| During Warm-up |
≤ 350 mA |
| Warm Up Time |
| To dF/Fn ≤ ± 5 × 10-8 referred to Fn after 1 hour |
≤ 10 min |
| Output signal type |
| Output Type |
Sine wave |
| Initial output level |
+ 7.5 dBm ± 2.5 dB |
| Output load impedance |
50 Ohm |
| Harmonics |
≤ -20 dBc |
| Spurious (100 Hz to 1 MHz from carrier) |
≤ -90 dBc |
| Typical Phase Noise |
| 1 Hz |
-95 dBc/Hz |
| 10 Hz |
-130 dBc/Hz |
| 100 Hz |
-140 dBc/Hz |
| 1 kHz |
-160 dBc/Hz |
| 10 kHz |
-165 dBc/Hz |
| 100 kHz |
-170 dBc/Hz |
| Temperature Ranges |
| Operating |
-20 °C ... +70 °C |
| Storage |
-40 °C ... +80 °C |
