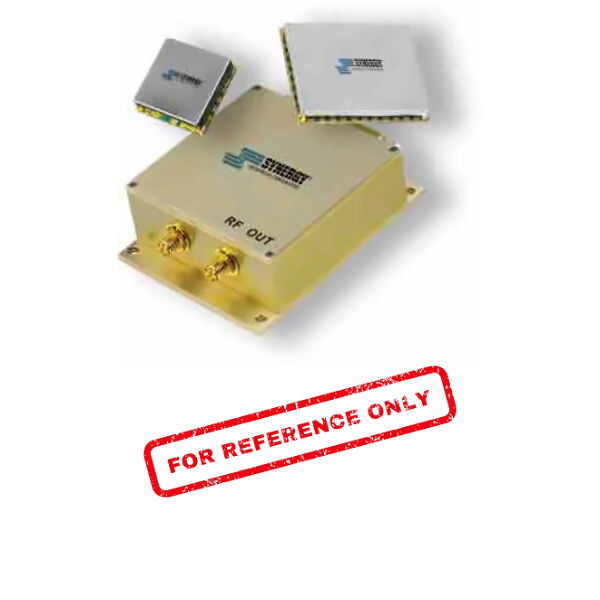

| SPECIFICATIONS (Rev. G 04/14/11) |
| Frequency |
2900 – 3420 MHz |
| Step Size |
1000 kHz |
| Reference Input Frequency |
10 MHz |
| Reference Input Voltage |
1.0 V p-p to 3.3 V p-p |
| Bias Voltage |
| VCC |
+5 V |
| Digital |
+5 V @ 40 mA |
| VCO |
+5 V @ 35 mA |
| Converter |
+5 V @ 55 mA |
| Output Power |
+7 dBm (Min.) |
| Spurious Suppression |
70 dBc (Typ.) |
| Harmonic Suppression |
14 dB (Typ.) |
| Setting Time |
15 mSec (Typ.) |
| Output Impedance |
50 Ohms (Nom.) |
| Lock Detect Indicator |
CMOS 3.3 V |
| Typical Phase Noise |
| @ 1 kHz |
-90 dBc/Hz |
| @ 10 kHz |
-92 dBc/Hz |
| @ 100 kHz |
-112 dBc/Hz |
| Operating Temperature Range |
-40 to +85 °C |
| Programming |
See Application Note: AN7100 |
