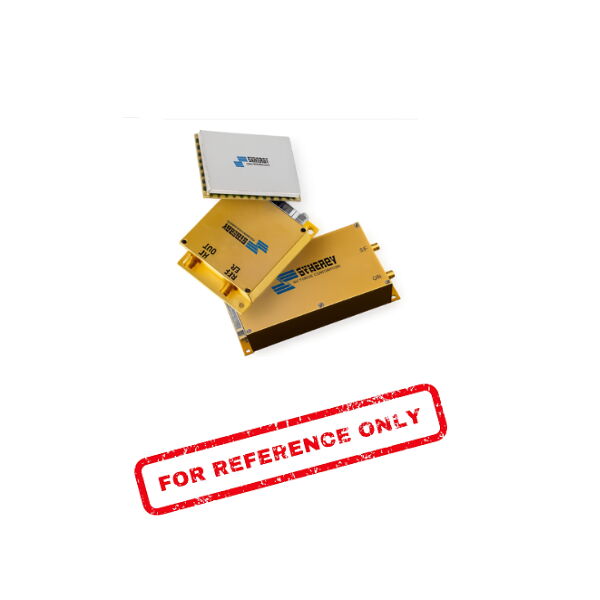

Name: KFXLNS-1000
Brand: SYNERGY
SKU: 0005924
Price: 360 USD
Availability: OutOfStock

KFXLNS-1000

$ 300,00 + KDV

SPECIFICATIONS (Rev. A 02/24/15)
Frequency	1000 MHz
Reference Input Frequency	100 MHz¹
Reference Input Power	13 dBm ±3 dB
Bias Voltage	+12 VDC @ 250 mA (Max.)
Output Power	–5 dBm (Min.)
Spurious Suppression	80 dB (Typ.)
Harmonic Suppression	35 dB (Typ.)
Output Impedance	50 Ohms (Nom.)
Lock Detect Indicator	CMOS 3.3 V
* External 100 MHz reference sources should have phase noise better than –143 dBc/Hz @ 100 Hz offset to achieve published specifications.

Typical Phase Noise
@ 100 Hz	–120 dBc/Hz
@ 1 kHz	–140 dBc/Hz
@ 10 kHz	–149 dBc/Hz
@ 100 kHz	–154 dBc/Hz
@ 1 MHz	–174 dBc/Hz
Operating Temperature Range: –20 to +70 °C
