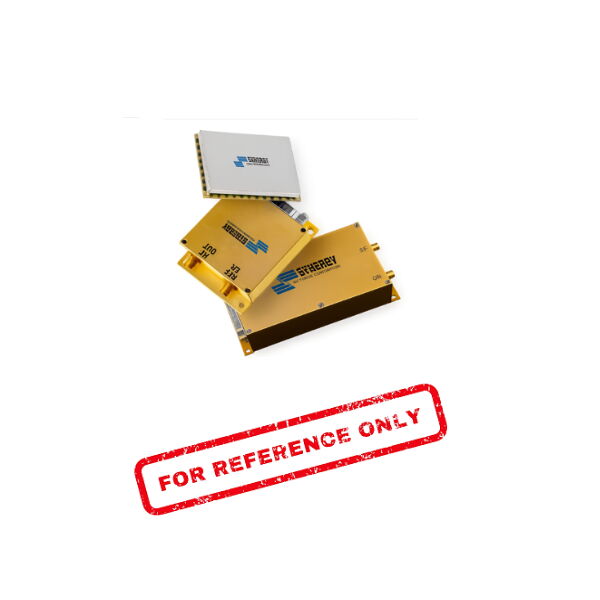

| Frequency |
1000 MHz |
| Reference Input Frequency |
10 MHz1 |
| Reference Input Voltage |
1.0 to 3.3 V p-p |
| Bias Voltage |
Digital: +5 VDC @ 25 mA
Tune: +12 VDC @ 10 mA
VCO: +5 VDC @ 35 mA |
| Output Power |
+5 dBm (Min.) |
| Spurious Suppression |
80 dB (Typ.) |
| Harmonic Suppression |
25 dB (Typ.) |
| Output Impedance |
50 Ohms (Nom.) |
| Lock Detect Indicator |
CMOS 3.3 V |
| Typical Phase Noise |
@ 100 Hz: –80 dBc/Hz |
| @ 1 kHz: –115 dBc/Hz |
| @ 10 kHz: –141 dBc/Hz |
| @ 100 kHz: –158 dBc/Hz |
| Operating Temperature Range |
–20 to +70 °C |
| * External 10 MHz reference sources should have phase noise better than –138 dBc/Hz @ 50 Hz offset to achieve published specifications. |
