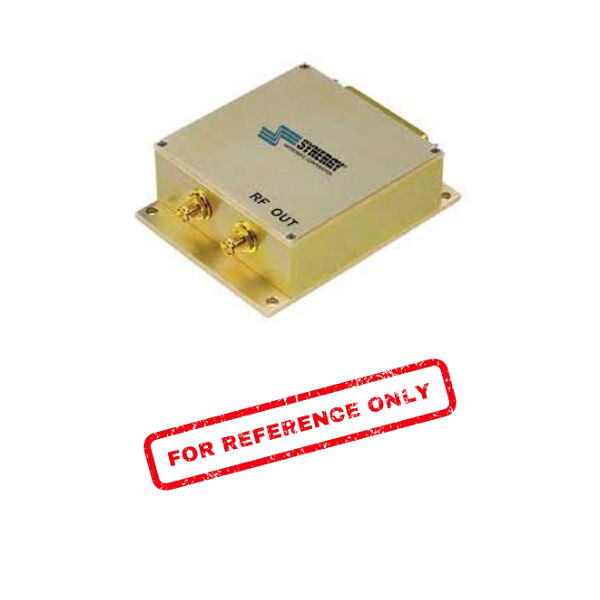

| SPECIFICATIONS (Rev. A 11/20/13) |
| Frequency |
125 MHz |
| Frequency Tuning Range1 |
±5 ppm (Typ.) |
| Frequency Stability Over Temperature |
±0.2 ppm (Typ.) / ±0.5 ppm (Max.) |
| Aging |
± 0.3 ppm/year (Typ.) |
| Warm-Up Time |
300 Sec. (Min.) |
| Phase Noise |
dBc/Hz (Max.) |
dBc/Hz (Typ.) |
| 100 Hz |
-135 |
-140 |
| 1 kHz |
-160 |
-162 |
| 10 kHz |
-170 |
-174 |
| 1 MHz |
-180 |
-185 |
| Jitter2 |
6 fs (Typ.) / 10 fs (Max.) |
| Allan Variance |
See Plot |
| Output Power |
+10 dBm (Min.) / +15 dBm (Typ.) |
| Harmonics |
-35 dBc (Typ.) / -25 dBc (Max.) |
| Supply Voltage VS |
| Minimum |
+11.4 V |
| Typical |
+12 V |
| Maximum |
+12.6 V |
| Supply Current IS |
| Steady State @ +25 °C |
120 mA (Max.) |
| During Warm-up |
300 mA (Max.) |
| Temperature Range (OTR) |
| Operating |
-20 °C to +60 °C |
| Storage |
-35 °C to +85 °C |
1 for Vtune = 1 to 10 VDC
2 100 Hz to 10 MHz
Patent : http://www.synergymwave.com/patents |
