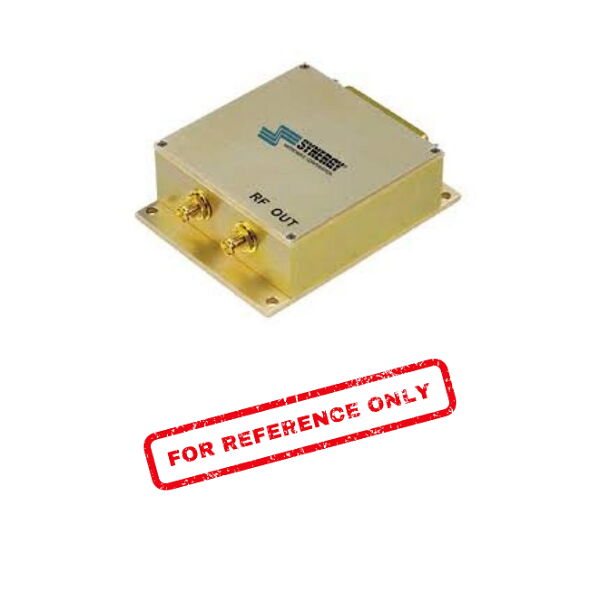

| SPECIFICATIONS (Rev. A 05/01/25) |
| Frequency |
100 MHz |
| Frequency Tuning Range |
±2.5 ppm (Min.) |
| Frequency Stability Over Temperature |
±0.1 ppm (Typ.) / ±0.3 ppm (Max.) |
| Initial Frequency Tolerance |
< 0.3 ppm (Vs = +5 V; TA = 25 °C, Power On > 30 Minutes) |
| Aging |
±0.3 ppm/year (Max.) |
| Warm-Up Time |
≤ 5 Min. |
| Phase Noise |
dBc/Hz (Max.) |
| 10 Hz |
-108 |
| 100 Hz |
-138 |
| 1 kHz |
-164 |
| 10 kHz |
-180 |
| 100 kHz |
-185 |
| 1 MHz |
-185 |
| Jitter1 |
≤ 50 fs |
| Allan Variance (τ = 1 Sec.) |
≤ 50 × 10-11 |
| Output Power (Sinewave) |
> +13 dBm |
| Harmonics |
< -30 dBc |
| Frequency Pushing |
≤ 5 ppb (VS ±5%) |
| Frequency Pulling |
≤ 5 ppb (50 Ohms ±5%) |
| G Sensitivity (X, Y or Z Axis) |
≤ 1 ppb/g |
| Output Impedance |
50 Ohms (Nom.) |
| Tuning Voltage (VC) |
0 – 10 V |
| Supply Voltage VS |
+5.0 V ±5% |
| Power Consumption |
| Steady State @ +25 °C |
≤ 2.0 W |
| During Warm-up |
≤ 5.0 W |
| Temperature Range (OTR) |
Min. |
Max. |
| Operating |
-20 °C |
+70 °C |
| Storage |
-40 °C |
+85 °C |
| 1 12 kHz to 20 MHz (RMS) |
