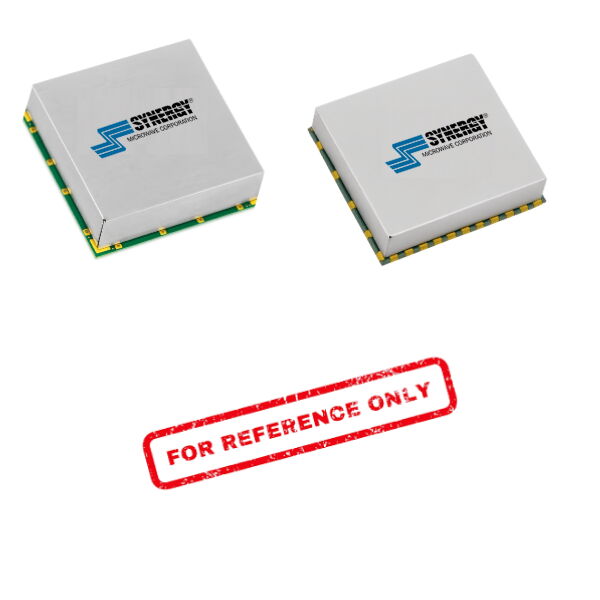

Name: HFSO1200-5
Brand: SYNERGY
SKU: 0006241
Price: 360 USD
Availability: OutOfStock

HFSO1200-5

$ 300,00 + KDV

SPECIFICATIONS
Frequency	1200 MHz
Tuning Voltage	0.5 - 12 VDC
Bias Voltage	+5 VDC @ 100 mA (Max.)
Output Power	+11 dBm (±2 dB)
Tuning Sensitivity	50 kHz/V (Typ.)
Thermal Drift	200 kHz (Typ.)
Output Impedance	50 Ohms (Nom.)
Harmonic Suppression	2nd: 20 dBc (Typ.)
Harmonic Suppression	3rd: 20 dBc (Typ.)
Sub-harmonic Suppression	20 dBc (Typ.)
Frequency Pulling	10 kHz (Typ. @ 1.75:1 VSWR)
Frequency Pushing	15 kHz/V (Typ.) Vcc ±5%
Tuning Port Capacitance	140 pF (Typ.)
Phase Noise @ 25 °C	@ 10 kHz: -142 dBc/Hz
Phase Noise @ 25 °C	@ 100 kHz: -164 dBc/Hz
Operating Temperature Range	-20 to +70 °C
Absolute Maximum Ratings
Storage Temp. Range	-40 to +85 °C
Bias Voltage	+5.5 V
Tuning Voltage	+15 V
DC Voltage Applied to RF Out	±25 V
