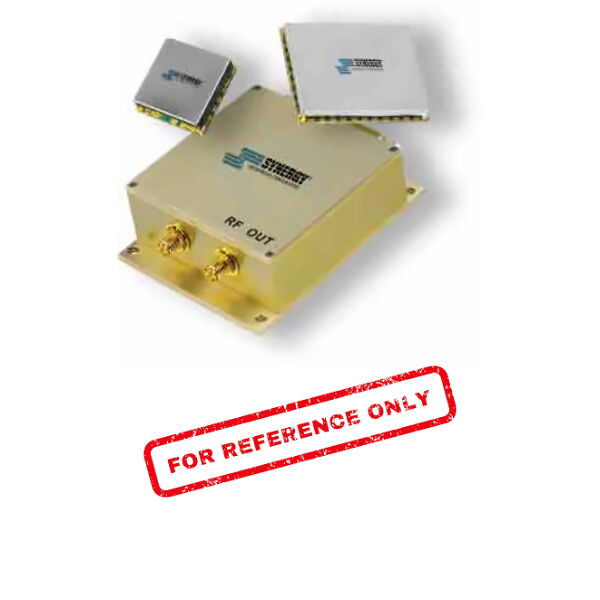

| SPECIFICATIONS (Rev. D 04/29/11) |
| Frequency |
2500 – 3000 MHz |
| Step Size |
10 MHz |
| Reference Input Frequency |
10 MHz |
| Reference Input Voltage |
1.0 V p-p to 3.3 V p-p |
| Bias Voltage |
| Digital |
+5 VDC @ 40 mA |
| VCO |
+5 VDC @ 35 mA |
| Tune |
+24 VDC @ 10 mA |
| Output Power |
+6 dBm (Min.) |
| Spurious Suppression |
100 dB (Typ.) |
| Harmonic Suppression |
25 dB (Typ.) |
| Setting Time |
3 mSec (Typ.) |
| Output Impedance |
50 Ohms (Nom.) |
| Lock Detect Indicator |
CMOS 3.3 V |
| Typical Phase Noise |
| @ 1 kHz |
-98 dBc/Hz |
| @ 10 kHz |
-98 dBc/Hz |
| @ 100 kHz |
-125 dBc/Hz |
| Operating Temperature Range |
-40 to +85 °C |
| Programming |
See Application Note: AN7100 |
| Absolute Maximum Ratings |
| Storage Temp. Range |
-55 to +125 °C |
| Bias Voltage (Digital) |
+5.25 V |
| Bias Voltage (VCO) |
+10.5 V |
| Bias Voltage (Tune) |
+26 V |
| DC Voltage Applied to RF Out |
±25 V |
