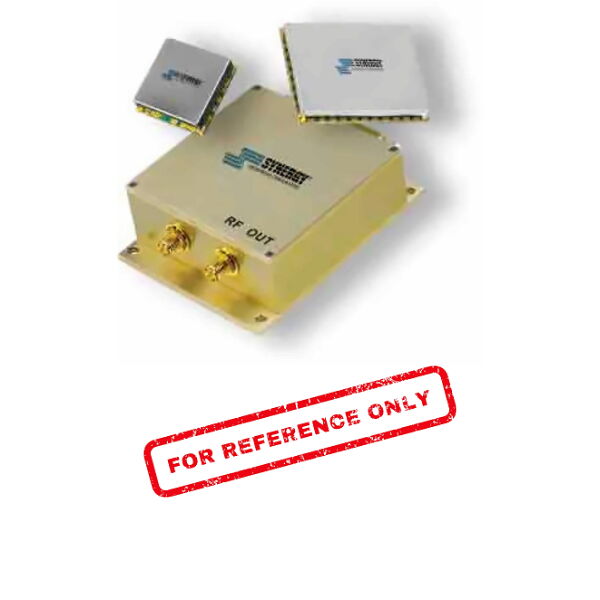

| SPECIFICATIONS (Rev. B 03/06/07) |
| Frequency |
3150 – 5550 MHz |
| Step Size |
5 MHz |
| Reference Input Frequency |
10 MHz |
| Reference Input Voltage |
0.8 V p-p to 3.3 V p-p |
| Bias Voltage |
| Digital |
+5 V / 65 mA |
| VCO |
+5 V / 65 mA |
| Tune |
+15 V / 10 mA |
| Output Power |
+5 dBm (Min.) |
| Spurious |
-75 dBc (Typ.) |
| Harmonics |
-10 dBc (Typ.) |
| Setting Time |
<50 μSec |
| Output Impedance |
50 Ohms (Nom.) |
| Typical Phase Noise |
| @ 10 kHz |
-80 dBc/Hz |
| @ 100 kHz |
-80 dBc/Hz |
| @ 1 MHz |
-100 dBc/Hz |
| Operating Temperature Range |
-40 to +85 °C |
| Programming |
See Analog Devices ADF4106 programming. |
