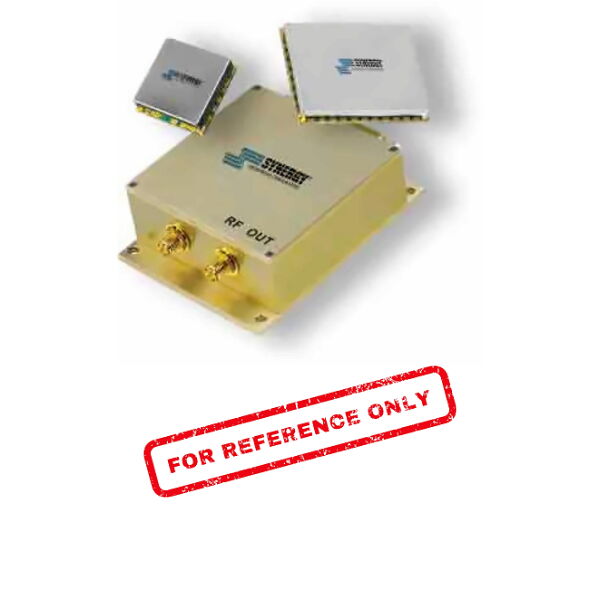

| SPECIFICATIONS (Rev. C 04/02/13) |
| Frequency |
4210 MHz |
| Reference Input Frequency |
10 MHz |
| Reference Input Voltage |
1.0 V p-p to 3.3 V p-p |
| Bias Voltage |
| Vcc |
V (Vdc) |
I (mA Max.) |
| Digital |
+5 |
65 |
| VCO |
+5 |
35 |
| VTune |
+10 |
10 |
| Output Power |
+5 dBm (Min.) |
| Spurious Suppression |
80 dB (Typ.) |
| Harmonic Suppression |
20 dB (Typ.) |
| Power-Up Time |
90 mSec (Max.)1 |
| Output Impedance |
50 Ohms (Nom.) |
| Lock Detect Indicator |
CMOS - 3.3 V |
| Typical Phase Noise |
| Offset |
Phase Noise |
| @ 1 kHz |
-90 dBc/Hz |
| @ 10 kHz |
-105 dBc/Hz |
| @ 100 kHz |
-125 dBc/Hz |
| Operating Temperature Range |
-30 to +70 °C |
| 1 From stable power on to stable lock detect |
| Absolute Maximum Ratings |
| Storage Temp. Range |
-55 to +125 °C |
| Bias Voltage (Digital) |
+5.25 V |
| Bias Voltage (Tune) |
+12.0 V |
| Bias Voltage (VCO) |
+8.5 V |
| DC Voltage Applied to RF Out |
±25 V |
