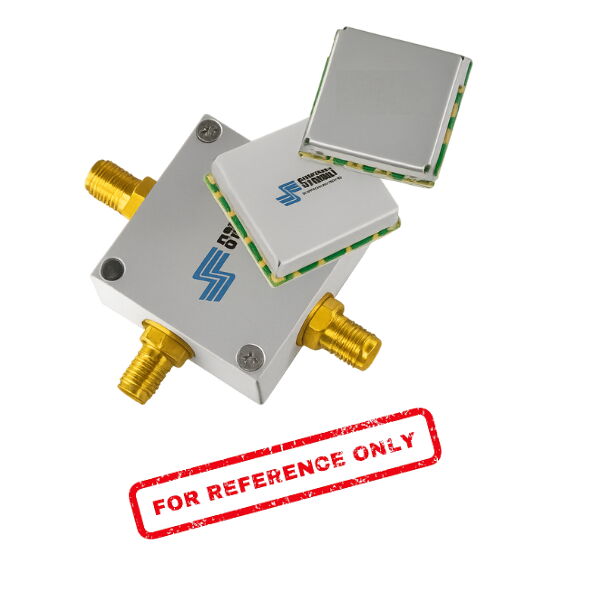

| SPECIFICATIONS (Rev. D 03/06/23) |
| Frequency |
10000 - 20000 MHz |
| Tuning Voltage |
0.5 to 15 VDC |
| Bias Voltage (Vcc 1)* |
-1.7 VDC @ 5 mA (Typ.) |
| Bias Voltage (Vcc 2)* |
+5 VDC @ 190 mA (Max.) |
| Output Power |
-4 dBm (Min.) |
| Tuning Sensitivity |
300 - 1700 MHz/V (Typ.) |
| Output Impedance |
50 Ohms (Nom.) |
| Harmonic Suppression |
10 dBc (Typ.) |
| Sub-Harmonic |
7 dB (Typ.) |
| Frequency Pulling |
144 MHz (Typ. @ 1.75:1 VSWR) |
| Frequency Pushing |
140 MHz/V (Typ.) |
| Tuning Port Capacitance |
15 pF (Typ.) |
| Offset |
dBc/Hz |
| 10 kHz |
-53 |
| 100 kHz |
-79 |
| Operating Temperature Range |
-40 to +85 °C |
Notes:
* Follow bias voltage sequencing
1) Set Vcc1 & Vcc2 to zero volts.
2) Set Vcc1 (gate voltage) as specified above.
3) Set Vcc2 (drain voltage) as specified above.
Typical plots are not indicative of actual performance. |
